TP-Link OMADA průmyslový switch IES210GPP (8xGbE,2xGbE/SFPcombo,6xPoE+,2xPoE++,240W,DIN,IP40,fanless)
Popis
Parametry
Hlídací pes
TP-Link OMADA průmyslový switch IES210GPP
Omada 10portový gigabitový průmyslový Easy Managed Switch se 6 porty PoE+ a 2 porty PoE++
- 8× gigabitových RJ45 portů: 2× PoE++, 6× PoE+
- 2× kombinované gigabitové RJ45/SFP sloty
- Napájecí rozpočet 240 W: až 60 W na každý PoE++ port
- Profesionální průmyslový design: provozní teplota -40 až 75 °C, ochrana proti blesku 6kV a záložní napájení 1+1
- Bohaté funkce: až 250 m (820 ft) PoE, VLAN, QoS a STP/RSTP
- Centralizovaná cloudová správa: přes webové rozhraní nebo aplikaci Omada

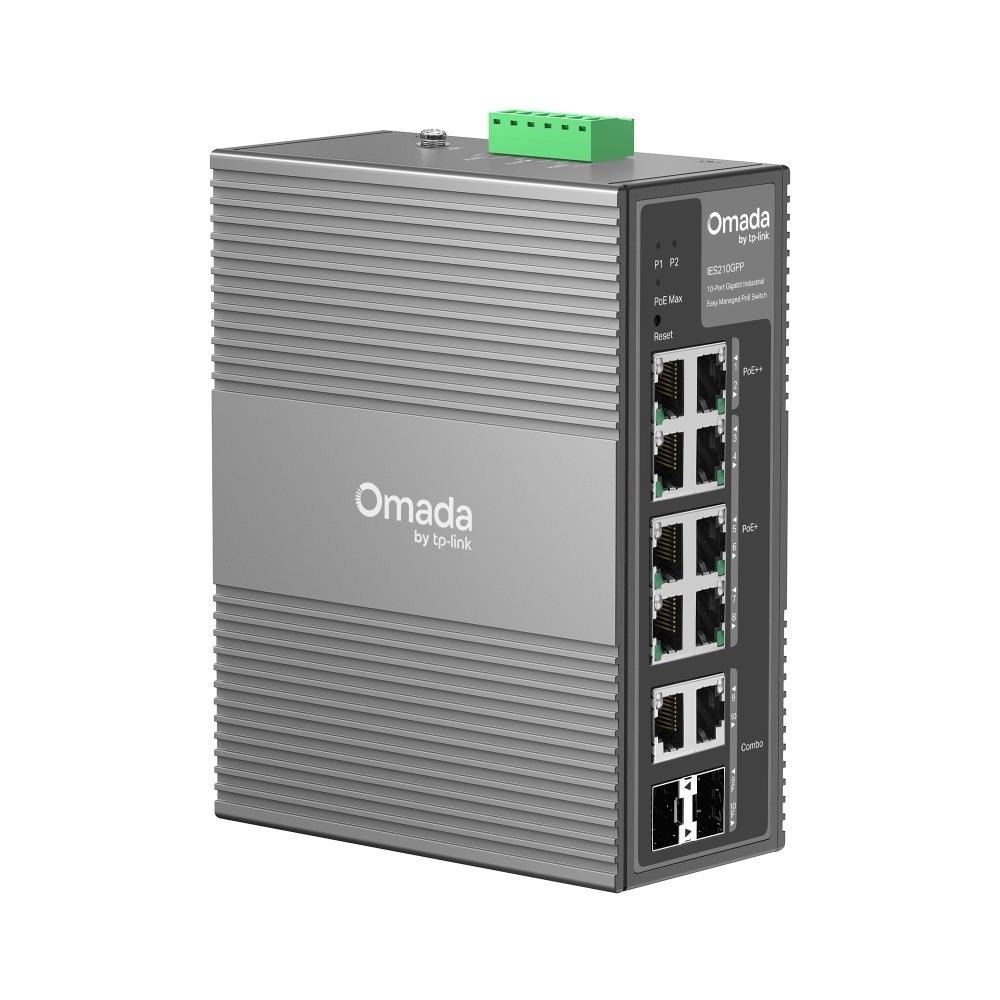

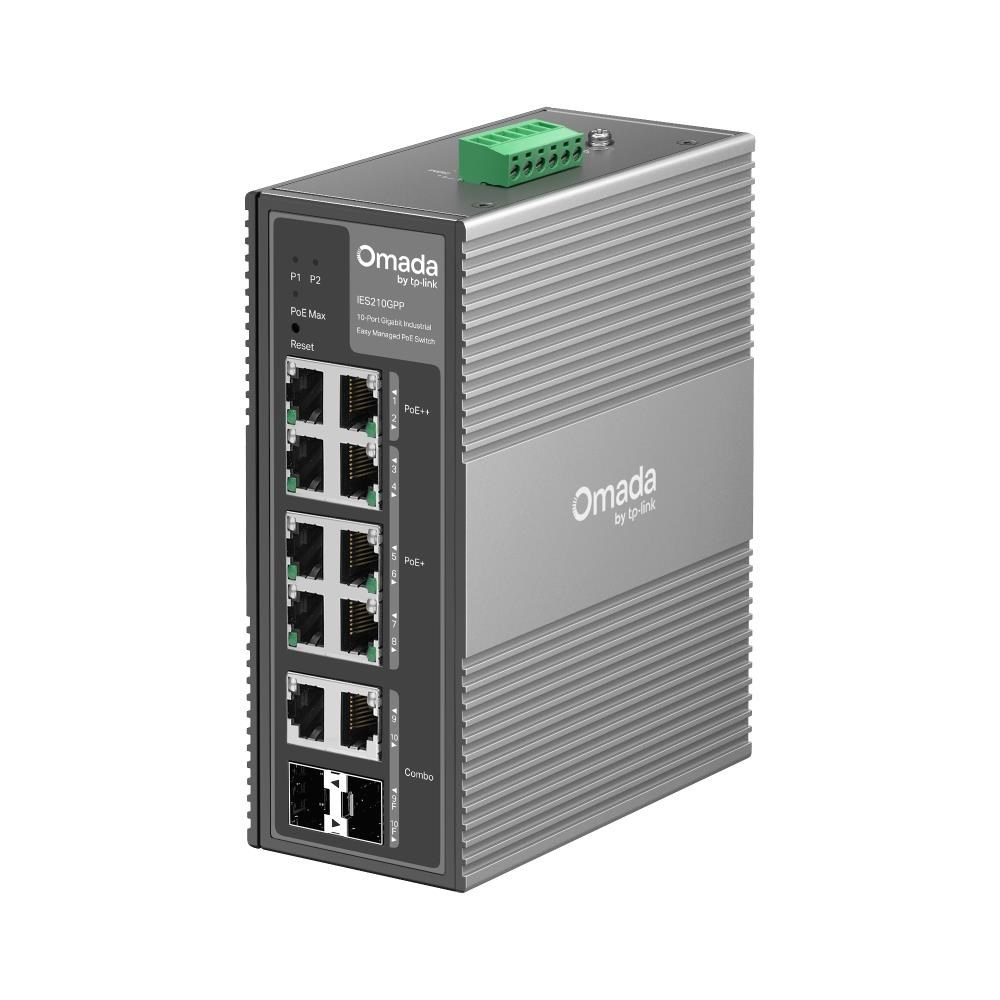

- Odolné hliníkové pouzdro: krytí IP40 a možnost montáže na DIN lištu nebo na stěnu
Stránky produktu: https://www.omadanetworks.com/cz/business-networking/omada-switch-industrial/ies210gpp/
Technické specifikace
| HARDWARE FEATURES | |
| Interface | • 2× 10/100/1000 Mbps PoE++ RJ45 Ports • 6× 10/100/1000 Mbps PoE+ RJ45 Ports • 2× Gigabit SFP/RJ45 Combo Slots • Auto-Negotiation/Auto MDI/MDIX |
| Fan Quantity | Fanless |
| Installation | • DIN-rail mounting • Wall mounting |
| Physical Security Lock | ? |

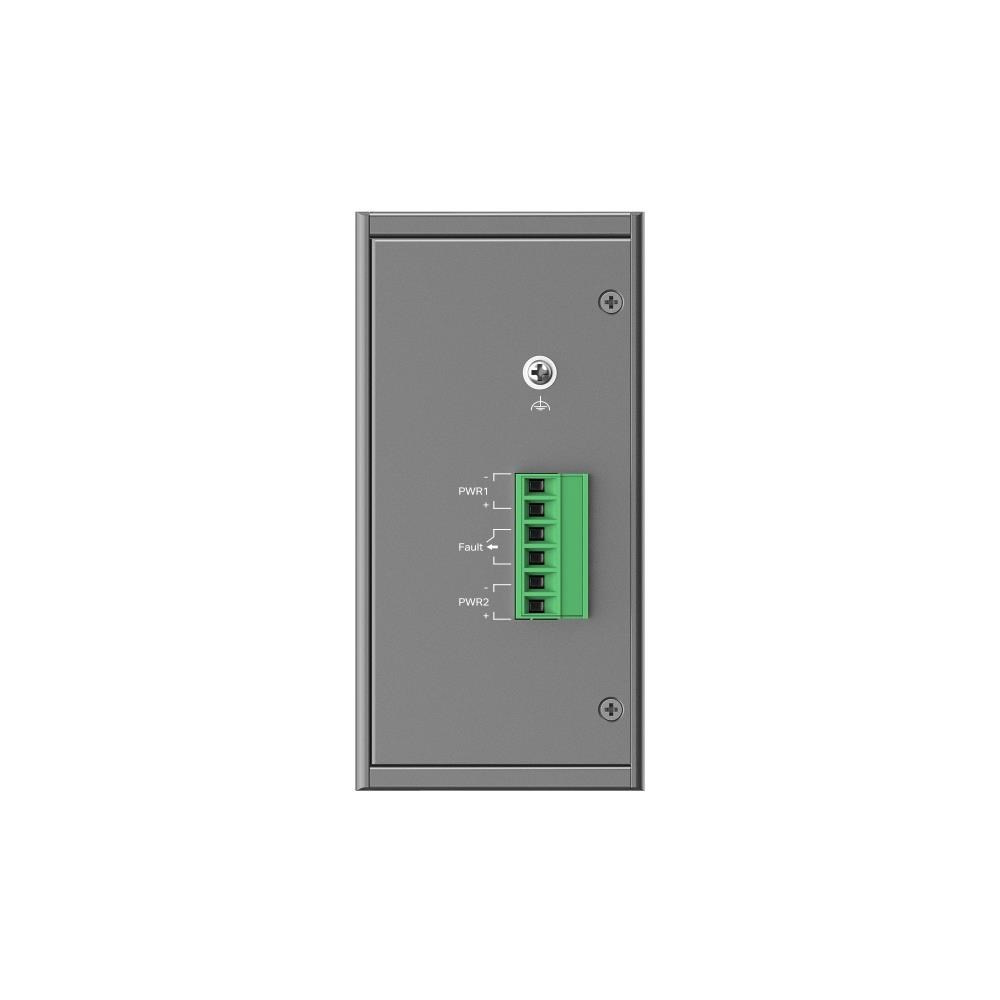

| Power Supply | 12-57V 1+1 Redundant DC Power Input |
| PoE Ports (RJ45) | • Standard: 802.3af/at/bt compliant • PoE++ Ports (802.3af/at/bt PoE): 2 Ports, up to 60W per port • PoE+ Ports (802.3af/at PoE): 6 Ports, up to 30W per port • PoE Budget: - 60W (Input: 12V / 7.2A - 21V / 3.7A)) - 120W (Input: 21V / 6.7A - 46V / 3.1A) - 240W (Input: 46V / 5.7A - 57V / 4.4A) |
| Dimensions ( W x D x H ) | 6.1 × 4.7 × 2.4 in (155 × 120 × 60 mm) |
| Surge Protection | • ±6 kV in common mode for Ethernet ports • ±4 kV in common mode for DC power input ports |
| PERFORMANCE | |
| Switching Capacity | 20 Gbps |
| Packet Forwarding Rate | 14.88 Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4 Mbit |
| Jumbo Frame | 15 KB |
| SOFTWARE FEATURES | |
| Quality of Service | • 802.1p DSCP Priority • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rate Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control |
| L2 Features | • Link Aggregation - Static Link Aggregation - Up to 4 aggregation groups and up to 6 ports per group • Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDP • Spanning Tree - STP (802.1d) - RSTP (802.1w) |
| L2 Multicast | • IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave |
| VLAN | • MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID |
| Transmission Method | Store-And-Forward |
| Management Features | |
| Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller |
| Management Features | • Web-based GUI • DHCP Client • Cable Diagnostics • Digital Diagnostic Monitoring (DDM) • Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Unified Configuration† |
| OTHERS | |
| Certification | FCC, CE, RoHS |
| Package Content | • IES210GPP • DIN-Rail Mounting Bracket • Wall-Mounting Plates • Installation Guide |
| Environment | • Operating Temperature: -40?~75? (-40?~167?) • Storage Temperature: -40?~85? (-40?~185?) • Operating Humidity: 5%~95% non-condensing • Storage Humidity: 5%~95% non-condensing |
Technologie:
Gigabit ethernet + Gigabit optika
Technologie:
Gigabit Ethernet 1000Mbps
Management:
Web
Vlastnosti switche:
Funkce POE po portech
Provedení:
DIN Rail
Funkce:
PoE (Power over ethernet)
Funkce:
QoS (Quality of service)
Funkce:
VLAN (virtual local area network)
Funkce:
DHCP snooping
Funkce:
L2
Funkce:
Web management/Smart switch
Podporované standardy PoE:
802.3af
Podporované standardy PoE:
802.3at
Podporované standardy PoE:
802.3bt
Ventilátor:
Ne
Počet portů LAN:
8
Přenosová rychlost LAN (Mb/s):
1000
Maximální počet portů:
10
Počet PoE Out portů:
8
Počet portů Combo:
2
Počet SFP portů:
2
PoE budget (W):
240
Počet PoE+ portů:
6
Počet PoE++ portů:
2
Aktuální cena produktu je6421Kč
s dph
