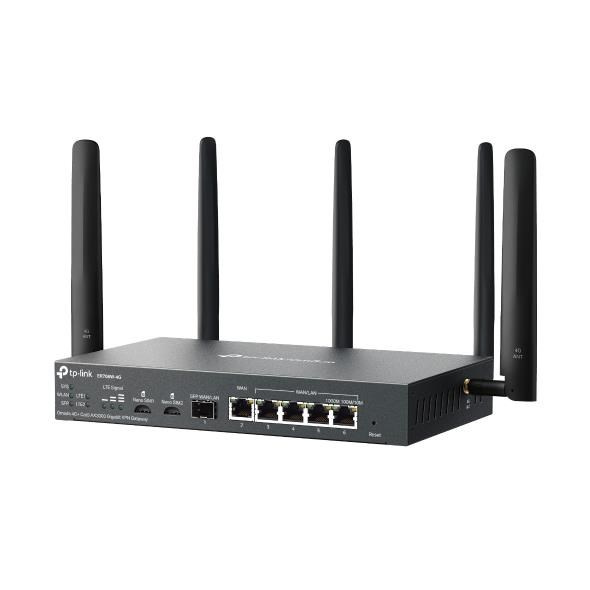

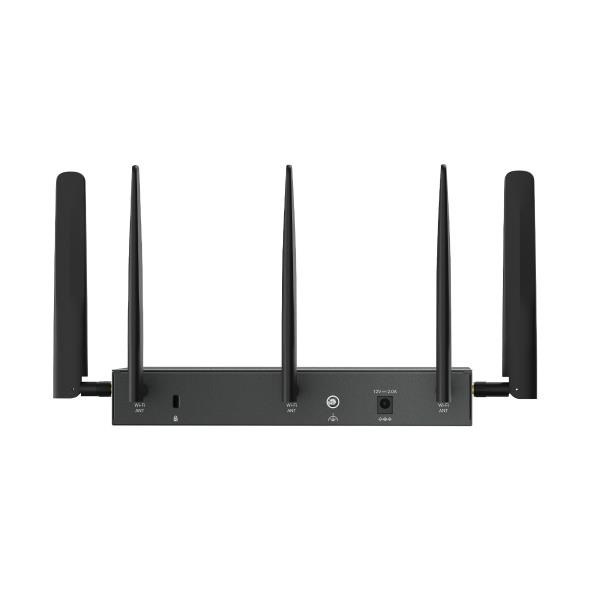

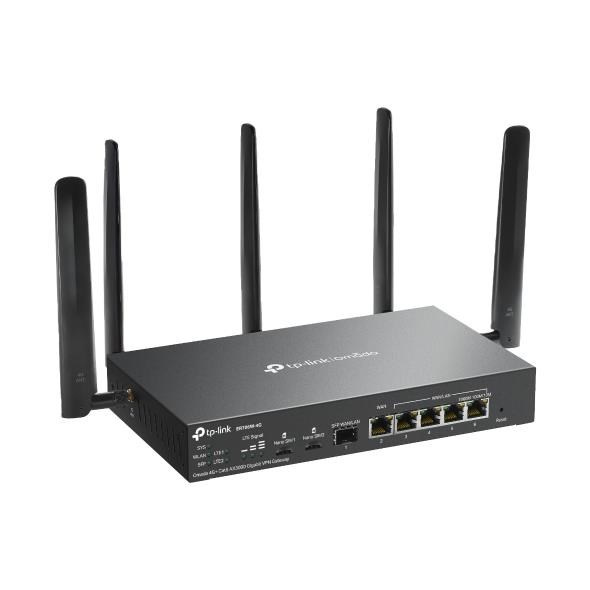

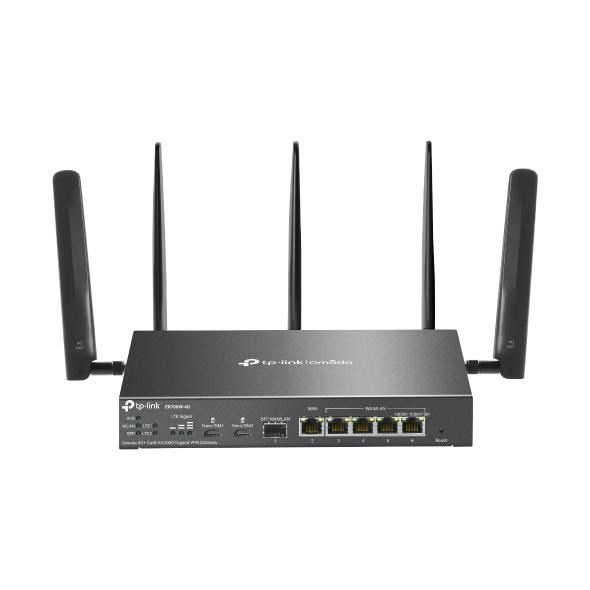

TP-Link ER706W-4G OMADA VPN 4G+Cat6 router (AX3000,1xSFP WAN/LAN,1xGbEWAN,4xGbELAN/WAN,1xnanoSIM)
Popis
Parametry
Hlídací pes
TP-Link ER706W-4G
Gigabitový VPN router Omada 4G+ Cat6 AX3000
- Podpora 4G+ Cat6:Vložte kartu Nano SIM a využívejte rychlost až 300 Mb/s.
- Dvoupásmový router s Wi-Fi 6 AX3000: Podporuje 2402 Mb/s na frekvenci 5 GHz a 574 Mb/s na frekvenci 2,4 GHz
- 6 gigabitových ethernetových portů: Poskytují vysokorychlostní kabelové připojení.
- 5 odnímatelných antén s vysokým ziskem:: Rozšiřují a koncentrují signály Wi-Fi.
- Centralizovaná správa:: Cloudový přístup a aplikace Omada pro snadnou správu.
- Omada Mesh: Bezproblémové připojení k zařízením EAP, která podporují technologii mesh.
- Vysoce zabezpečená síť VPN: Podporuje sítě IPSec / SSL / WireGuard / OpenVPN / PPTP / L2TP VPN.
Learn more about Omada Cloud SDN
https://www.tp-link.com/cz/business-networking/omada-router-wifi-router/er706w-4g/>
Technické specifikace
| 4G | |
| Network Type | LTE Band of EU: |
| LTE Band of EU: | • 4G LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/900/800/700/1450 MHz) |
| • 4G LTE-TDD: B38/B40/B41 (2600/2300/2500 MHz) • 3G DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA: B1/B3/B5/B8 (2100/1800/850/900 MHz) | |
| Carrier Aggregation of EU: | Carrier Aggregation of EU: B1+B1/B3/B5/B7/B8/B20/B28/B38/B40/B41 B3+B3/B5/B7/B8/B20/B28/B38/B40/B41 B5+B5/B7/B38/B40/B41 B7+B7/B8/B20/B28/B32 B8+B32/B38/B40/B41 B20+B32/B38/B40 B28+B32/B38/B40/B41 B38+B38 B40+B40 B41+B41 |
| LTE Band of US: | LTE Band of US: • 4G LTE-FDD: B2/B4/B5/B7/B12/B13/B14/B25/B26/B29/B30/B66/B71 (1950/2100/850/2600/750/750/750/1950/850/700/2350/2150/650 MHz) • 4G LTE-TDD: B41/B48 (2500/3600 MHz) |
| Carrier Aggregation of US: | Carrier Aggregation of US: B2+B2/B4/B5/B7/B12/B13/B14/B29/B30/B48/B66/B71 B4+B4/B5/B7/B12/B13/B29/B30/B71 B5+B5/B7/B25/B30/B41/B66 B7+B7/B12/B66 B12+B12/B25/B30/B66 B13+B66 B14+B30/B66 B25+B25/B26/B41 B26+B41 B29+B30/B66 B30+B66 B41+B41 B48+B48 B66+B66/B71 |
| SIM Type | 1× Nano SIM Card |
| Frequency | • Downlink: 300 Mbps; • Uplink: 50 Mbps |
| SECURITY | |
| Access Control | Source/Destination IP Based Access Control |
| Filtering | • Web Group Filtering† • URL Filtering • Web Security† |
| ARP Inspection | • Sending GARP Packets • ARP Scanning† • IP-MAC Binding |
| Attack Defense | • TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN |
| HARDWARE FEATURES | |
| Interface | • 1 Gigabit SFP WAN/LAN Port • 1 Gigabit WAN Port • 4 Gigabit LAN/WAN Ports |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m) • 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m) • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) |
| Button | Reset Button |
| Power Supply | 12VDC / 2A Power Adapter |
| Wi-Fi Frequency & Signal Rate | • 2.4 GHz: 574 Mbps • 5 GHz: 2402 Mbps (HE160) |
| Flash | 128 MB NAND |
| DRAM | 512 MB DDR4 |
| LED | SYS, WLAN, SFP, LTE Signal, WAN (1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act) |
| Dimensions ( W x D x H ) | 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) (Antenna dimensions are not included) |
| Antenna | • Wi-Fi: Three 5GHz 5.5dBi & 2.4GHz 4.5dBi dual-band detachable antennas • LTE: Two 4.0dBi omnidirectional detachable antennas |

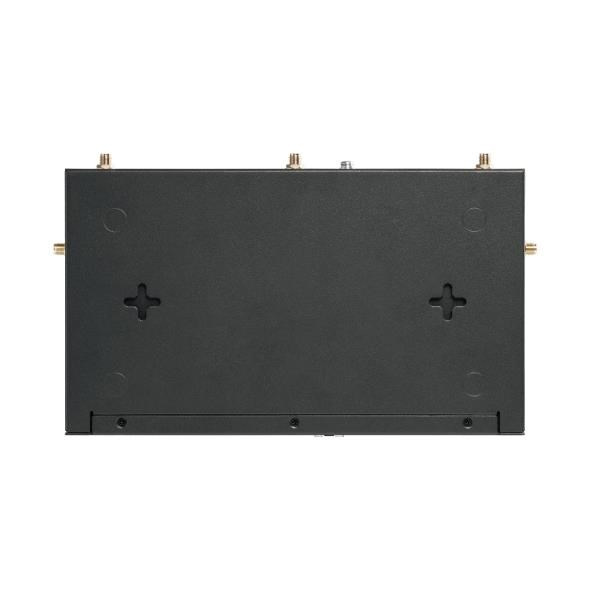

| Mounting | Desktop/Wall-Mounting |
| Max Power Consumption | EU: 15.4W US: 17.3W |
| PERFORMANCE | |
| GRE | • Unencrypted: 545.3Mbps • Encrypted: 282.6Mbps |
| WireGuard VPN | 387.7Mbps |
| Concurrent Session | 150 |
| New Sessions /Second | 5,1 |
| NAT (Static IP) | 947.1Mbps / 940.1Mbps |
| NAT(DHCP) | 949.2Mbps / 941.1Mbps |
| NAT(PPPoE) | 942.6Mbps / 941.1Mbps |
| NAT (L2TP) | 875.4Mbps / 892.0Mbps |
| NAT (PPTP) | 881.2Mbps / 895.8Mbps |
| IPsec VPN Throughput | • ESP-SHA1-AES256: 652.2Mbps • ESP-SHA256-AES256: 654.4Mbps • ESP-SHA384-AES256: 646.5Mbps • ESP-SHA512-AES256: 670.5 Mbps |
| OpenVPN | 115.5Mbps |
| L2TP VPN Throughput | • Unencrypted: 990.0Mbps • Encrypted: 475.0Mbps |
| PPTP VPN Throughput | • Unencrypted: 1177.9Mbps • Encrypted: 177.4Mbps |
| SSL VPN Throughput | 122.5Mbps |
| 66 Byte Packet forwarding rate | 1,453,489 pps / 1,453,488 pps |
| 1,518 Byte Packet forwarding rate | 81274 pps / 91275 pps |
| WIRELESS FEATURES | |
| Advanced Functions | • Seamless Roaming • Mesh (with EAP that supports Mesh) • OFDMA • Beamforming • MU-MIMO • Rate Limit: Based on SSID/Client • Airtime Fairness • Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise • Multiple SSIDs: 16 in total (8 per radio) |
| Guest Network | Support |
| BASIC FUNCTIONS | |
| WAN Connection Type | • Static IP • Dynamic IP • PPPoE (supports MRU Configuration) • PPTP • L2TP |
| MAC Clone | Modify WAN Address |
| DHCP | • DHCP Server • DHCPv6 PD Server (only in Standalone Mode) • DHCP Options Customization • DHCP Address Reservation • Multi-IP Interfaces • Multi-Net DHCP |
| SMS | Receive / Send SMS |
| IPv6 | StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy, Custom Mode, Bridge Mode |
| ADVANCED FUNCTIONS | |
| ACL | IP/Port/Protocol/Domain Name Filtering |
| Advanced Routing | • Static Routing • Policy Routing • RIP† • OSPF† |
| Bandwidth Control | IP-Based Bandwidth Control |
| Load Balance | • Intelligent Load Balance • Application Optimized Routing • Link Backup(Timing, Failover) • Online Detection |
| NAT | • One-to-One NAT • Multi-Net NAT • Virtual Server • Port Triggering† • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP |
| Session Limit | IP-Based Session Limit |
| VPN | |
| GRE | Only in Standalone Mode |
| SSL VPN | 50 Tunnels |
| IPsec VPN | • 100 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm • IPsec Failover • IKE v1/v2 • MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS) |
| PPTP VPN | • PPTP VPN Server • PPTP VPN Client (10)? • 50 Tunnels • PPTP with MPPE Encryption |
| L2TP VPN | • L2TP VPN Server • L2TP VPN Client (10)? • 50 Tunnels • L2TP over IPSec |
| OpenVPN | • OpenVPN Server • OpenVPN Client (5)? • 55 OpenVPN Tunnels • "Certificate + Account" Mode • Full Mode |
| AUTHENTICATION | |
| Web Authentication | • No Authentication • Simple Password§ • Hotspot (Local User / Voucher§ / SMS§ / Radius§) • External Radius Sever • External Portal Sever§ • LDAP |
| MANAGEMENT | |
| Omada App | Yes. |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller |
| Cloud Access | Yes. |
| Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization) |
| Maintenance | • Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3 • Diagnostics (Ping & Traceroute)† • NTP Synchronize† • Port Mirroring • CLI (only in Standalone Mode) • Syslog Support |
| Zero-Touch Provisioning | Yes. Require the use of Omada Cloud-Based Controller. |
| Management Features | • Automatic Device Discovery • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | • ER706W-4G • Power Adapter • Quick Installation Guide |
| System Requirements | • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11 • MAC OS, NetWare, UNIX or Linux |
| Environment | • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F) • Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F) • Operating Humidity: 10% to 90% non-condensing • Storage Humidity: 5% to 90% non-condensing |
Počet portů LAN:
4
USB port:
Ne
Gigabit ethernet:
Ano
Další vlastnosti:
VLAN
Další vlastnosti:
Podpora IPv6
Další vlastnosti:
FTP server
Další vlastnosti:
Management
Další vlastnosti:
Podpora 4G/LTE
Funkce:
Router
Funkce:
VPN
Podporované standardy:
802.11n
Podporované standardy:
802.11ax
Podporované standardy:
802.11a
Podporované standardy:
802.11ac
Podporované standardy:
802.11b
Podporované standardy:
802.11g
Slot na SIM kartu:
Ano
Přenosová rychlost Wi-Fi (Mb/s):
2917 - 4000
Typ antény:
Odnímatelná
Počet SFP portů:
1
Počet portů LAN:
4
Počet SFP portů:
1
Aktuální cena produktu je10581Kč
s dph
