TP-Link DR3650v-4G OMADA ADSL/VDSL/4GLTE gateway (AX3000,2xFXS,1xDSL,2,4GHz/5GHz,1xGbELAN/WAN,4xGbE,1xUSB3.0,2xnanoSIM)
Popis
Parametry
Hlídací pes

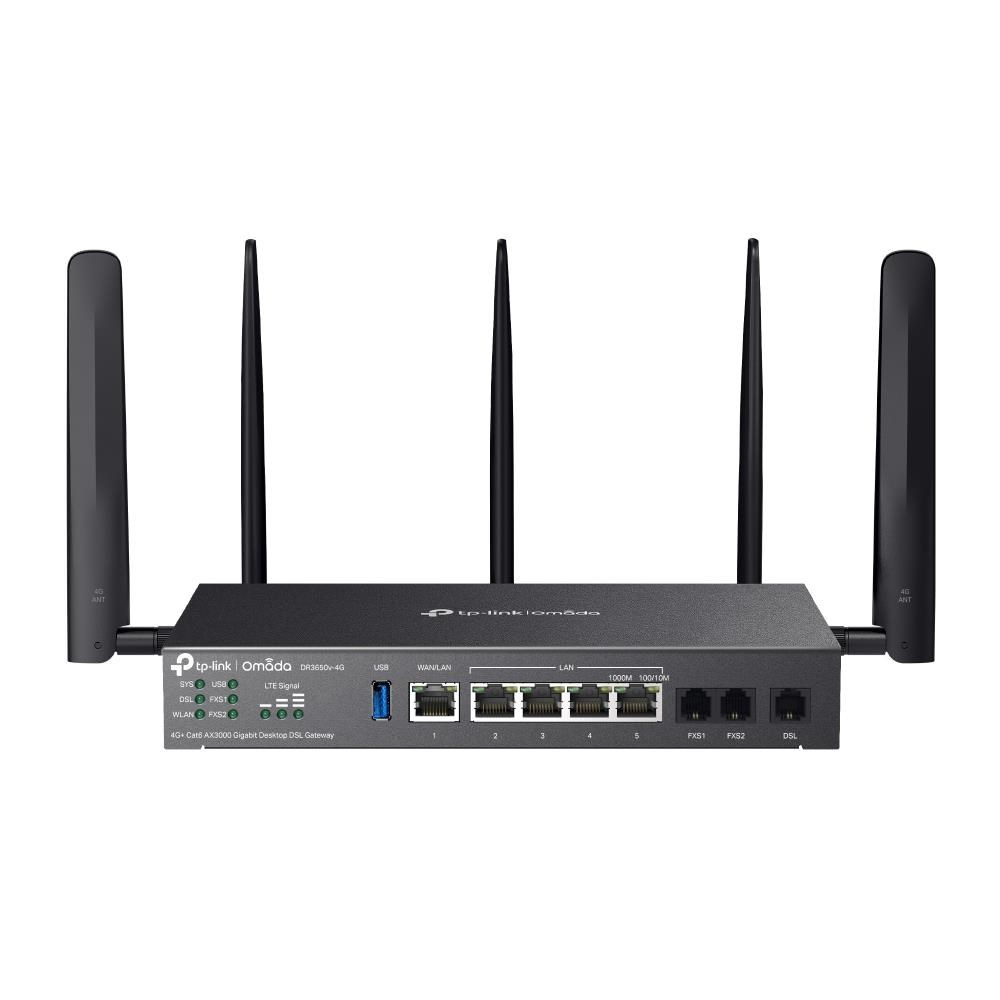

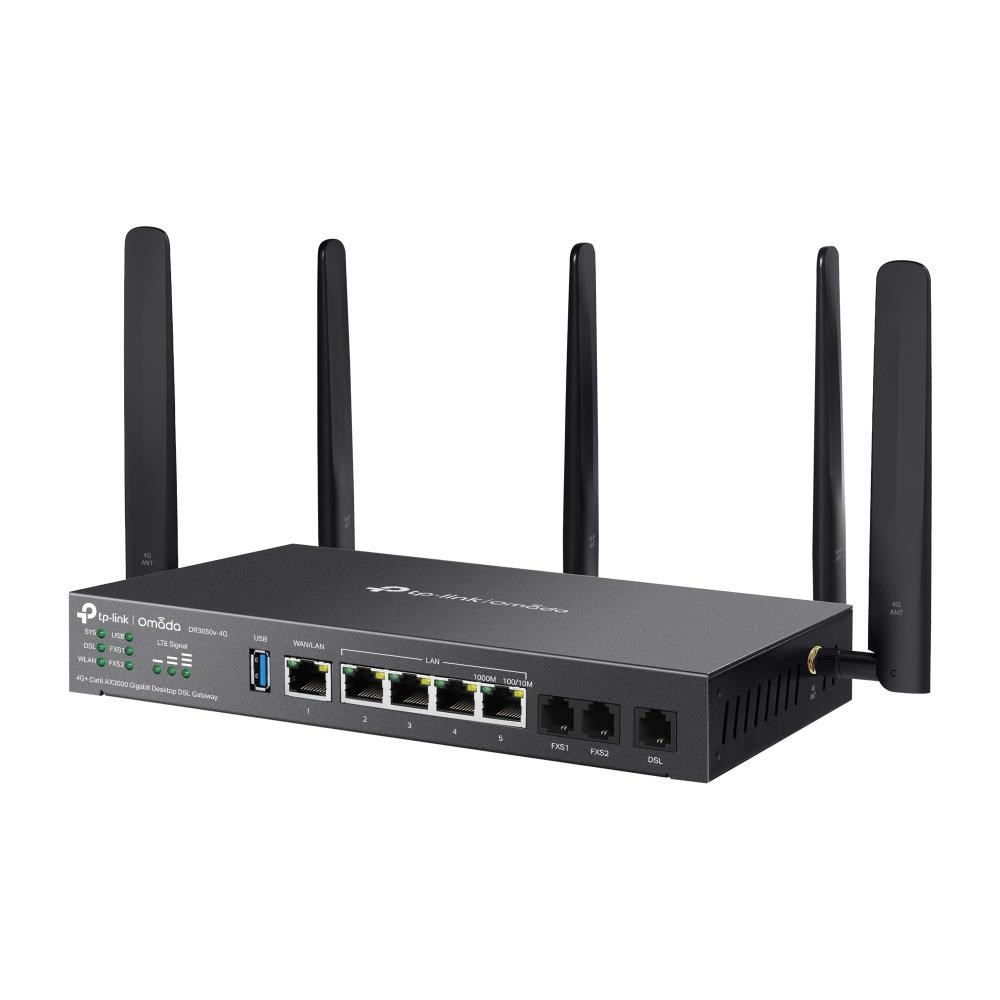

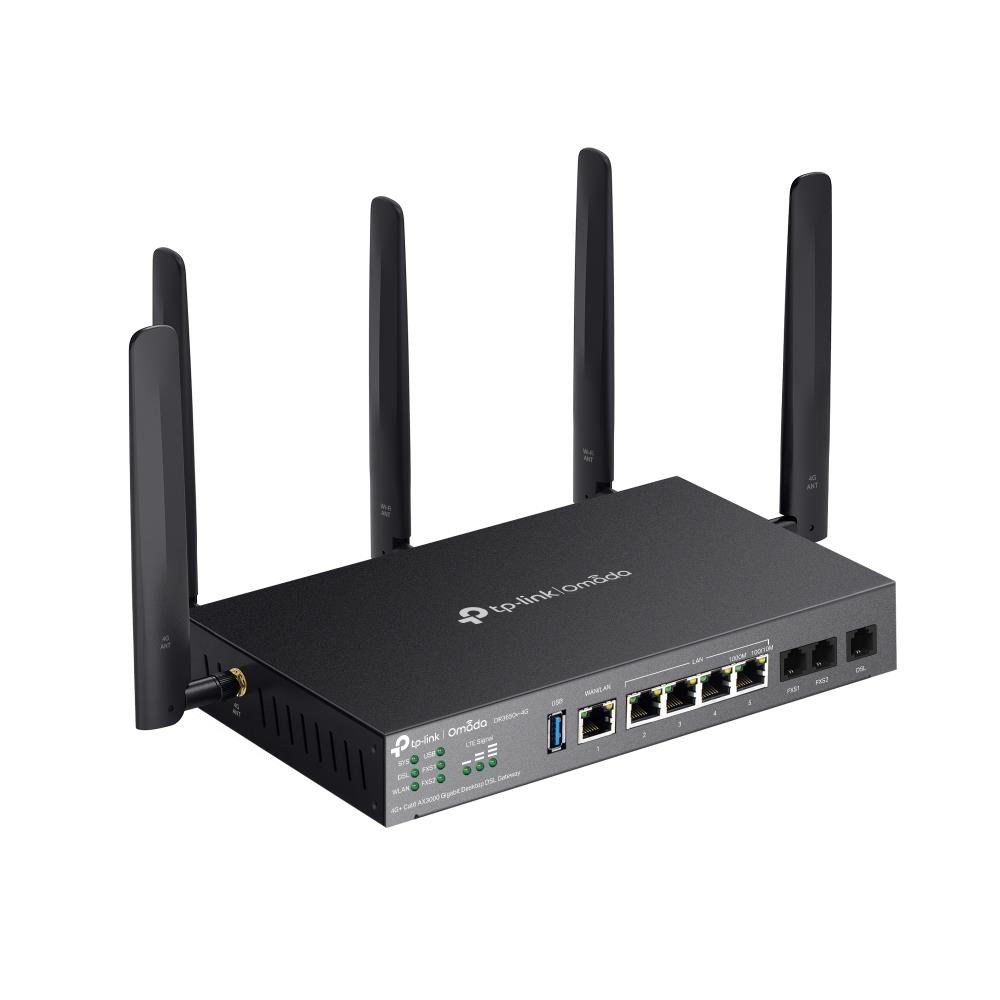

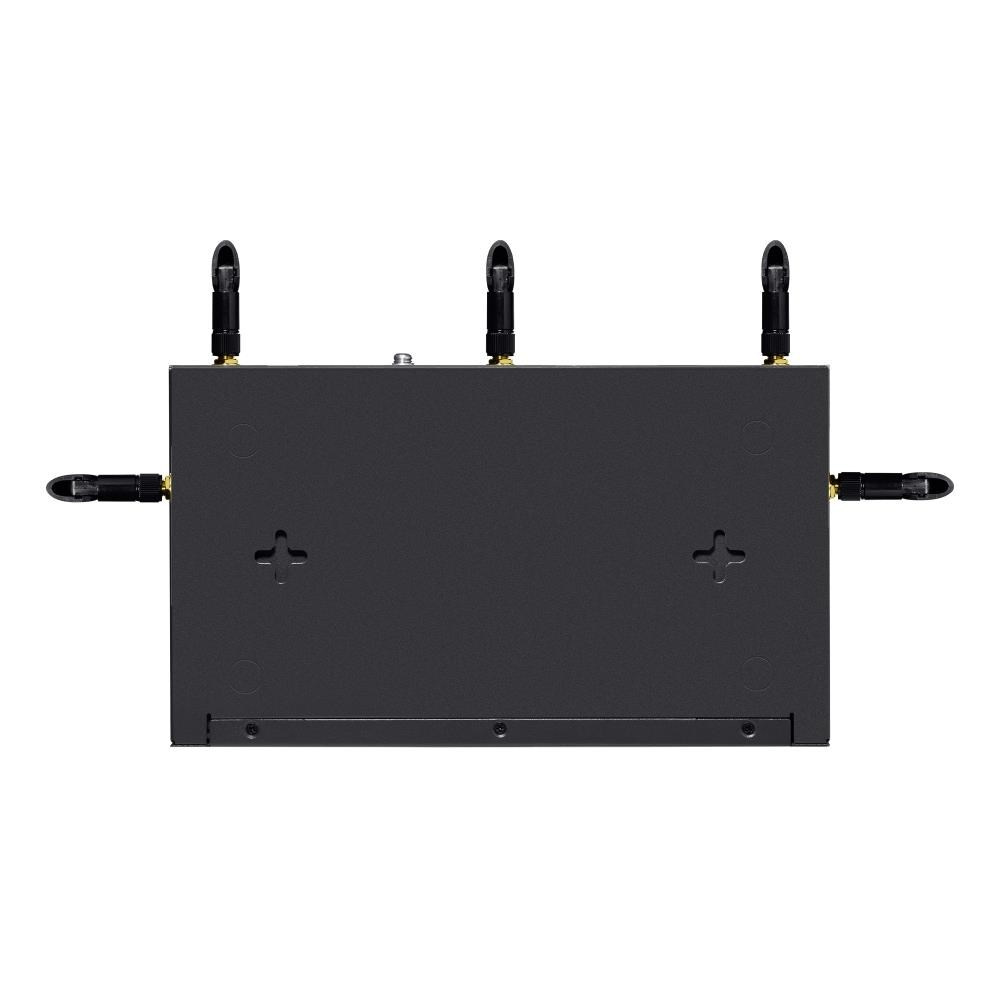

TP-Link OMADA DR3650v-4G
Omada 4G+ Cat6 AX3000 Wi-Fi 6 Gigabit Desktop DSL Gateway
- AX3000 Wi-Fi 6 s 2402 Mb/s na frekvenci 5 GHz a 574 Mb/s na frekvenci 2 GHz. 4 GHz*1
- 4G+ Cat6 až 300Mb/s
- 3× Porty RJ11 (2× FXS, 1× DSL) & 5× Gigabitové porty RJ45 & 1× USB 3.0 Port
- 2× Nano SIM pro 4G/LTE Failover
- VDSL2 35b: Podporuje 350Mb/s přístup DSL*2
- Kompatibilita s VDSL2/ADSL2+/ADSL2/ADSL
- IPSec/PPTP/L2TP/OpenVPN/WireGuard/GRE/SSL VPN
- Vyvažování zátěže napříč DSL, 4G a Ethernet WAN pro optimalizované připojení
- Centralizovaná správa cloudu
- Montáž na stůl/stěnu/stojan (zakoupit samostatně sadu pro montáž do stojanu D226)
Learn more about Omada Cloud SDN
Stránky produktu: https://www.omadanetworks.com/cz/business-networking/omada-router-dsl-router/dr3650v-4g
Technické specifikace
| SECURITY | |
| Access Control | Source/Destination IP Based Access Control |
| Filtering | • Web Group Filtering*5 • URL Filtering • Web Security*5 |
| ARP Inspection | • Sending GARP Packets • ARP Scanning*5 • IP-MAC Binding |
| Attack Defense | • TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN |
| HARDWARE FEATURES | |
| Interface | • 1× Gigabit WAN/LAN Port • 4× Gigabit LAN Ports • 1× DSL Port • 2× FXS Ports • 1× USB 3.0 (supports USB LTE dongle and USB Storage) • Dual Nano SIM Slot (4G+ Cat6) |
| Button | Reset Button |
| Power Supply | 12V DC / 3.3A Power Adapter |
| Wi-Fi Frequency & Signal Rate | • 2.4 GHz: 574 Mbps • 5 GHz: 2402 Mbps (HE160) |
| Flash | 256 MB NAND |
| DRAM | 512 MB DDR4 |
| Dimensions ( W x D x H ) | 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) (Antenna dimensions are not included) |
| Antenna | • Wi-Fi: 3× 5GHz 5dBi & 2.4GHz 3.5dBi dual-band detachable antennas • LTE: 2× 4.0dBi omnidirectional detachable antennas |
| Mounting | Desktop / Wall / Rack mount (Purchase Rackmount Kit-D226 Separately) |
| Max. Power Consumption | Power adapter not included: 28.482 W (Full load + USB) Power adapter included: 31.42 W (Full load + USB) |
| PERFORMANCE | |
| GRE | • Unencrypted: 541.8Mbp • Encrypted: 289.2Mbps |
| WireGuard VPN | 311.6Mbps |
| Concurrent Session | 150 |
| New Sessions /Second | 3,8 |
| NAT (Static IP) | 937.2 Mbps / 936.1Mbps |
| NAT(DHCP) | 945.8 Mbps / 940.6Mbps |
| NAT(PPPoE) | 942.9 Mbps / 942.9Mbps |
| NAT (L2TP) | 837.4 Mbps / 881.5Mbps |
| NAT (PPTP) | 803.0 Mbps / 910.5 Mbps |
| IPsec VPN Throughput | • ESP-SHA1-AES256: 569.9Mbps • ESP-SHA256-AES256: 543.3Mbps • ESP-SHA384-AES256: 549.0Mbps • ESP-SHA512-AES256: 539.3Mbps |
| OpenVPN | 129.3Mbps |
| L2TP VPN Throughput | • Unencrypted: 909.4 Mbps • Encrypted: 494.9Mbps |
| PPTP VPN Throughput | • Unencrypted: 897.5 Mbps • Encrypted: 190.8 Mbps |
| SSL VPN Throughput | 126.7Mbps |
| 66 Byte Packet Forwarding Rate | 1,453,489 pps / 1,453,488 pps |
| 1,518 Byte Packet forwarding rate | 81,274 pps / 91,275 pps |
| WIRELESS FEATURES | |
| Advanced Features | • Seamless Roaming • Mesh (with EAP that supports Mesh) • OFDMA • Beamforming • Enable/Disable SSID Broadcast • Enable/Disable Wireless Radio • MU-MIMO • Load Balance • Automatic Channel Selection Algorithm • Airtime Fairness • Rate Limit: Based on SSID/Client • Transmit Power Control: Adjust transmit Power on dBm • Multiple SSIDs: 16 in total (8 per radio) • Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise |
| Guest Network | Support |
| BASIC FUNCTIONS | |
| WAN Connection Type | • Static IP • Dynamic IP • PPPoE (supports MRU Configuration) • PPTP • L2TP |
| MAC Clone | Modify WAN Address |
| DHCP | • DHCP Server • DHCPv6 PD Server (only in Standalone Mode) • DHCP Options Customization • DHCP Address Reservation • Multi-IP Interfaces • Multi-Net DHCP |
| IPv6 | StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy, Custom Mode, Bridge Mode |
| Advanced Features | |
| Advanced Routing | • Static Routing • Policy Routing • RIP*5 • OSPF*5 |
| Bandwidth Control | IP-Based Bandwidth Control |
| Load Balance | • Intelligent Load Balance • Application Optimized Routing • Link Backup(Timing, Failover) • Online Detection |
| NAT | • One-to-One NAT • Multi-Net NAT • Virtual Server • Port Triggering*5 • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP |
| Session Limit | IP-Based Session Limit |
| VPN | |
| GRE | Only in Standalone Mode |
| SSL VPN | 50 Tunnels |
| IPsec VPN | • 100 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm • IPsec Failover • IKE v1/v2 • MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS) |
| PPTP VPN | • PPTP VPN Server • PPTP VPN Client (10)*6 • 50 Tunnels • PPTP with MPPE Encryption |
| L2TP VPN | • L2TP VPN Server • L2TP VPN Client (10)*6 • 50 Tunnels • L2TP over IPSec |
| OpenVPN | • OpenVPN Server • OpenVPN Client (5)*6 • 55 OpenVPN Tunnels • "Certificate + Account" Mode • Full Mode |
| WireGuard VPN | Yes |
| AUTHENTICATION | |
| Web Authentication | • No Authentication • Simple Password*6 • Hotspot (Local User / Voucher*6 / SMS*6 / Radius*6) • External Radius Sever • External Portal Sever*6 • LDAP |
| Management Features | |
| Omada App | Yes |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. Require the use of Omada Controller. |
| Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization) |
| Maintenance | • Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3 • Diagnostics (Ping & Traceroute)*5 • NTP Synchronize*5 • Port Mirroring • CLI (only in Standalone Mode) • Syslog Support • TR-069 (data models of TR-098 and TR181 are supported) |
| Zero-Touch Provisioning | Yes.Require the use of Omada Controller. |
| Management Features | • Automatic Device Discovery • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration |
| OTHERS | |
| Certification | CE, RoHS |
| Package Content | • DR3650v-4G • Power Adapter • Ethernet Cable • Phone Cable • Rubber Feet, • SIM Card Eject Pin • Quick Installation Guide |
| System Requirements | • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11 • MAC OS, NetWare, UNIX or Linux |
| Environment | • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F) • Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F) • Operating Humidity: 10% to 90% non-condensing • Storage Humidity: 5% to 90% non-condensing |
USB port:
Ano
Gigabit ethernet:
Ano
Další vlastnosti:
Management
Funkce:
Modem pro mobilní data
Podporované standardy:
802.11ax
Slot na SIM kartu:
Ano
Přenosová rychlost Wi-Fi (Mb/s):
2100 - 2700
Typ antény:
Odnímatelná
Počet portů LAN:
5
Aktuální cena produktu je12001Kč
s dph
