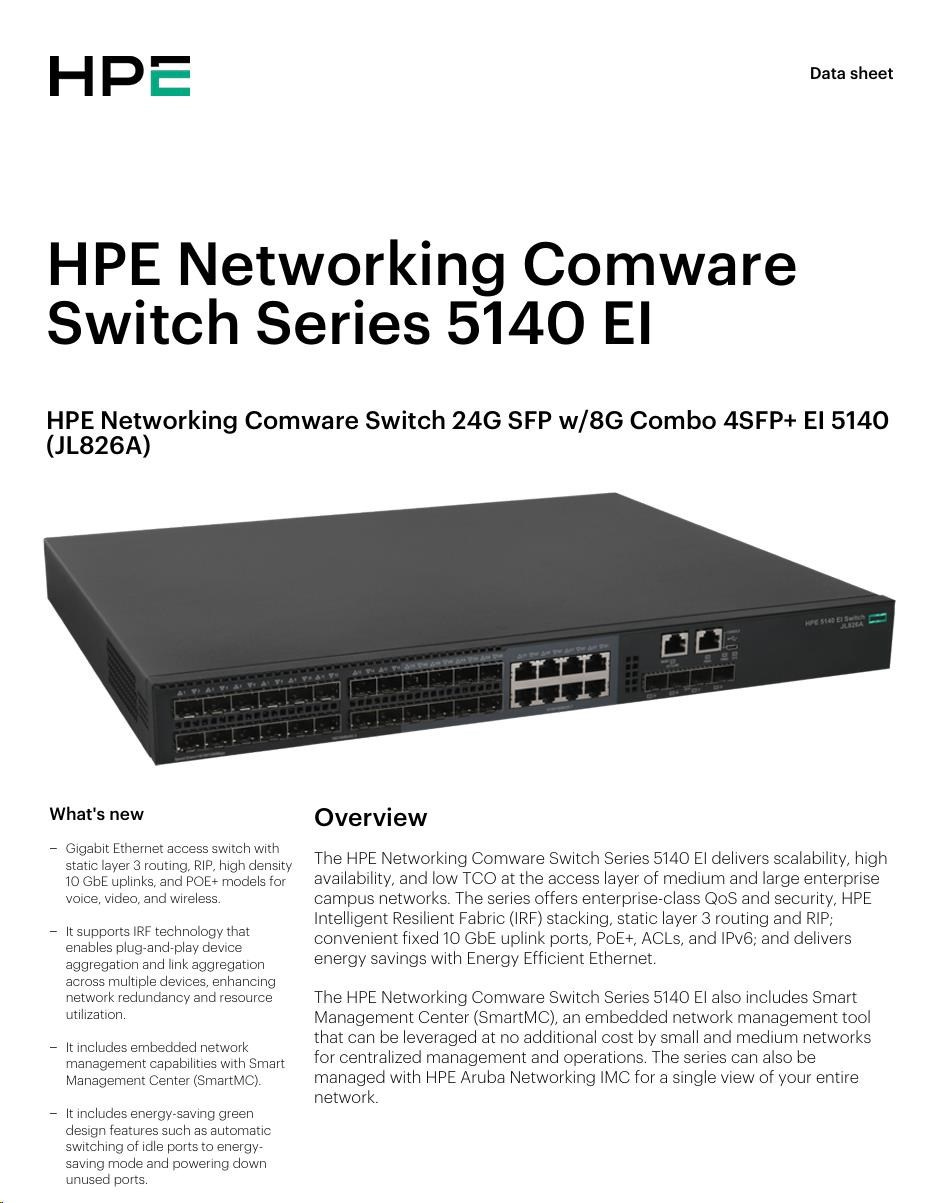

HPE Networking Comware Switch 24G SFP w/8G Combo 4SFP+ EI 5140 JL826AR RENEW

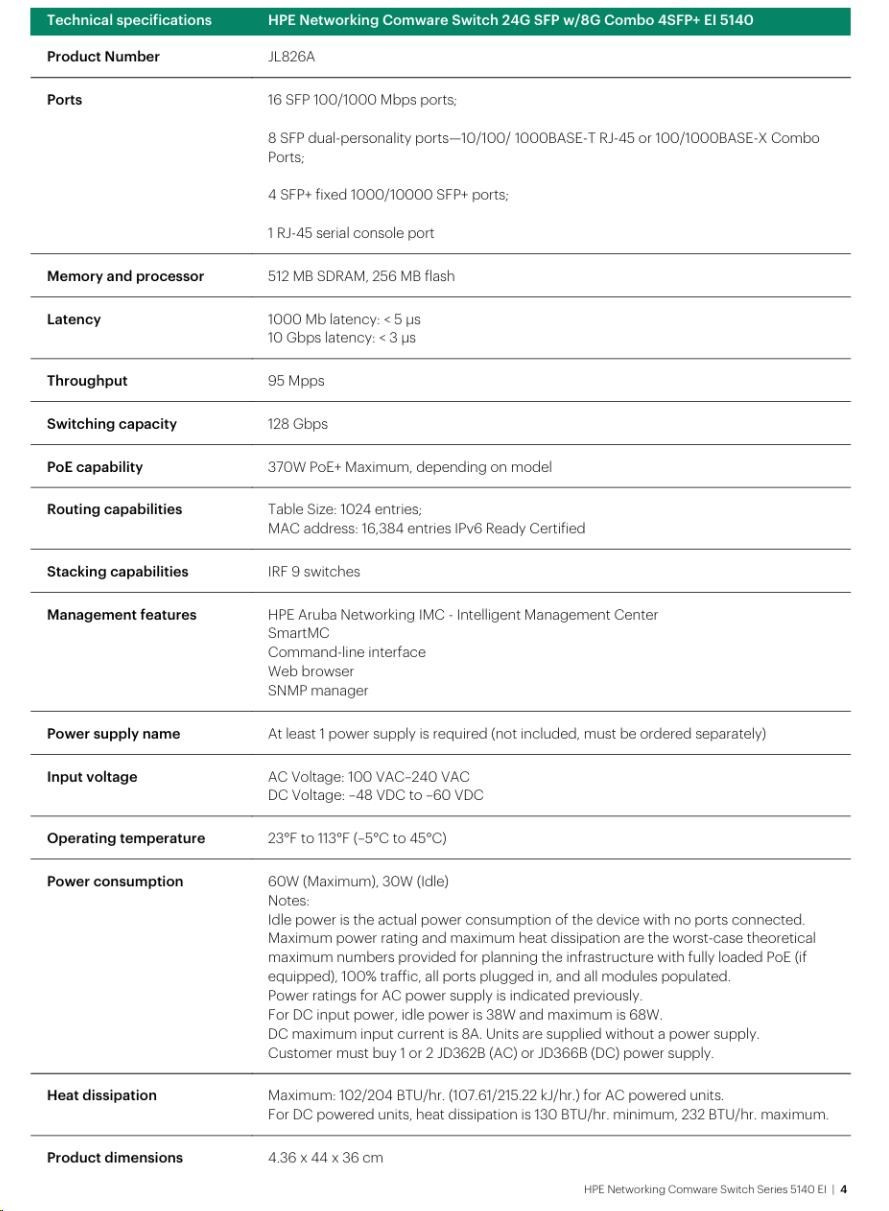

HPE FlexNetwork 5140 24G SFP 4SFP+ EI Switch (JL826A)

I/O ports and slots

16 SFP 100/1000 Mbps ports

8 SFP dual-personality ports - 10/100/1000BASE-T RJ-45 or 100/1000BASE-X Combo Ports

4 SFP+ fixed 1000/10000 SFP+ ports

Additional ports and slots

1 RJ-45 serial console port

Power supplies

2 power supply slots

1 minimum power supply required (ordered separately)

Physical characteristics

Dimensions

17.32(w) x 14.17(d) x 1.72(h) in (44 x 36 x 4.36 cm) (1U height)

Weight

13.23 lb (6kg)

Memory and processor

512 MB SDRAM, 256 MB flash;

Mounting and enclosure

Mounts in an EIA standard 19-inch telco rack or equipment cabinet (Rack Mount Kit R8M91A sold separately)

Performance

IPv6 Ready Certified

1000 Mb Latency

< 5 µs

10 Gbps Latency

< 3 µs

Throughput

95 Mpps

Routing/Switching capacity

128 Gbps

Routing table size

1024 entries

MAC address table size

16384 entries

Environment

Operating temperature

23°F to 113°F (-5°C to 45°C)

Operating relative humidity

10% to 90%, noncondensing

Non-operating/Storage temperature

-40°F to 158°F (-40°C to 70°C)

Non-operating/Storage relative humidity

5% to 95%, noncondensing

Acoustic

Low-speed fan: 41.4 dB, High-speed fan: 47.7 dB; ISO 7779

Electrical characteristics

Frequency

50/60 Hz

Maximum heat dissipation

102/204 BTU/hr (107.61/215.22 kJ/hr), for AC Powered units. For DC powered units heat dissipation is 130 BTU/hr min, 232 BTU/hr max.

Voltage

100 - 240 VAC

-48 to -60 VDC

Current

5 A

Maximum power rating

60 W

Idle power

30 W

Notes:

- Idle power is the actual power consumption of the device with no ports connected.

- Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.

- Power Ratings for AC Power Supply indicated above.

- For DC input power, Idle Power is 38W and Max is 68W.

- DC Max input current is 8A. Units are supplied without a power supply. Customer must buy 1 or 2 JD362B (AC) or JD366B (DC) power supply.

Safety

UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; IEC 62368-1; CAN/CSA-C22.2 No. 60950-1; EN 62368-1/A11; FDA 21 CFR Subchapter J; ROHS Compliance

Emissions

FCC Part 15 Subpart B CLASS A; ICES-003 CLASS A; VCCI-CISPR 32 CLASS A; EN 55032 CLASS; AS/NZS CISPR32 CLASS A; CISPR 24; EN 55024; EN 61000-3-2; EN 61000-3-3; ETSI EN 300 386; GB/T 9254; YD/T 993

Immunity

Generic

EN 55024

ESD

EN300 386

Management

IMC - Intelligent Management Center; SmartMC;command-line interface; Web browser; SNMP Manager
