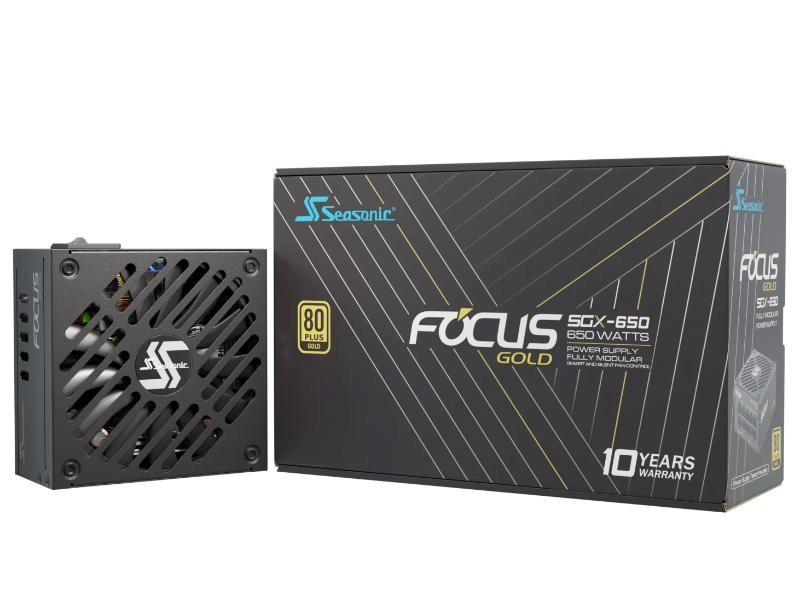

    SEASONIC zdroj 650W SGX-650 (SSR-650SGX), SFX, 80+GOLD

    Novinka
    Přidat do oblíbenýchSEASONIC zdroj 650W SGX-650 (SSR-650SGX), SFX, 80+GOLD
    Výkon zdroje (ve W):650; Formát zdroje:SFX; Konektory:PCIe 8-pin, SATA 15-pin, Molex, FDD; Konektory pro základní desku:ATX 24-pin, EPS 8-pin.

    Kód produktu522171
    Part number1SF65GFRT3A10X
    EAN produktu4711173874522

    Záruka:10 Rok(ů)
    Výrobce:Seasonic
    Skladová dostupnost:Na dotaz
    Běžná cena
    4279 Kč
    Vaše cena bez DPH
    3181.82 Kč
    Vaše cena včetně DPH
    3850 Kč
    Počet
    ks
    Dotaz na prodejce >






    Přidat produkt k porovnání >Přidat produkt k oblíbeným >
    Popis
    Parametry
    Hlídací pes

    FOCUS SGX


    The long-awaited new line of Seasonic's FOCUS SGX is versatile in its application, and powerful with a small footprint. The FOCUS SGX is shipped with an SFX to ATX adapter bracket in the box, which allows the power supply to be mounted not only in the SFX form factor chassis, but also a standard ATX chassis should the user prefers to reserve more space for airflow inside the PC case. The Seasonic hybrid fan control is always enabled to optimize the cooling according to necessity.


    Compact SFX-L Size


    The versatile FOCUS SGX measures at only 125 mm in both length and width. This super-compact size allows it to fit into various sized computer cases.


    Hybrid Silent fan Control


    The industry’s first, Seasonic patented, advanced three-phased thermal control achieves optimal between silence and cooling. This Hybrid Silent Fan Control functions in three operational stages: Fanless Mode, Silent Mode, and Cooling Mode.


    Benefits



    • Reduced noise without increase in temperature;

    • Extended fan life due to the reduced number of fan rotations;

    • Optimized heat dissipation at all times;

    • Unsurpassed silent performance in Fanless Mode.


    Fluid Dynamic Fan Bearing


    High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.


    How it works


    When the fan shaft rotates, high pressure oil drifts along the grooves of the bearing sleeve to generate a thin layer of lubrication between the bearing faces. As the speed increases, so does dynamic oil pressure and the shaft is lifted from the bearing to create smooth, effortless rotations. The herringbone shape of the groves helps to efficiently channel the lubricant and avert leakage.


    feature summary





    • 80 PLUS® Gold certified

    • Compact SFX-L Size - 125 (L) x 125 (W) x 63.5 (H) mm

    • Tight Voltage Regulation

    • Cable-free Connection Design





    • S3FC - Fanless until 30 % load

    • SFX to ATX Expandability

    • Gold plated connectors

    • 10 years warranty


    Specifications














































    Technical Specifications
    80PLUS® Gold
    Cybenetics Efficiency Level TBA
    Cybenetics Noise Level TBA
    Form Factor Intel SFX 12 V / ATX 12 V
    Dimensions 125 mm (W) x 125 mm (L) x 63.5 mm (H)
    Fan Information Fan Size 120 mm
    Fan Control Premium Hybrid Fan Control
    Fan Bearing Fluid Dynamic Bearing
    Life Expectancy 50,000 hours at 40 °C, 15 % - 65 % RH
    Cable Information Modularity Fully Modular
    Cable type Flat black cables
    Electrical Features Operating Temperature 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)
    MTBF @ 25 °C, excl. fan 100,000 hours
    AC Input Full Range
    Protection OPP, OVP, UVP, OCP, OTP, SCP
    Safety and Environmental Safety and EMC cTUVus, TUV, CB, CCC, BSMI, EAC, CE
    Environmental Compliance Energy Star, RoHS, WEEE, ErP Lot 6, REACH
    Warranty 10 Years























    Power Output
    AC Input Voltage: 100 V - 240 V
    Current: 9 - 4.5 A
    Frequency: 50 Hz - 60 Hz
    DC Output Rail +3.3 V +5 V +12 V -12 V +5 VSB
    Maximum Power 20 A 20 A 54 A 0.3 A 3 A
    100 W 648 W 3.6 W 15 W
    Total continuous power 650 W





    Cables



    SSR-650SGX














































    Cable type Connector(s) per cable Total length (mm) Number(s) of cable(s) included
    MB-610 MB (24/20 pins) 1 350 1
    CPU-650 CPU (8/4 pins) 1 400 1
    PCIe-750-2x PCIe (8/6 pins) 2 500 2
    PCIe-750-1x PCIe (8/6 pins) 1 750 0
    SATA-810-4x-90 SATA 4 810 0
    SATA-800-4x-180 SATA 4 800 0
    SATA-760-4x-90 SATA 4 760 0
    SATA-700-2x-90 SATA 2 700 0
    SATA-600-3x-90 SATA 3 600 2
    SATA-570-2x-180 SATA 2 570 0
    SATA-470-2x-180 SATA 2 470 0
    SATA-450-2x-180 SATA 2 450 0
    Molex-690-3x Molex 3 700 1
    Molex-470-2x Molex 2 470 0
    Molex-to-SATA-3-3-300 Molex to SATA 3.3 Adapter 2 300 0
    Molex-to-FDD-101 Molex to FDD Adapter 1 101 1

    Specifications are subject to change without prior notice.





    .
    Výkon zdroje (ve W): 650
    Formát zdroje: SFX
    Konektory: PCIe 8-pin
    Konektory pro základní desku: EPS 8-pin
