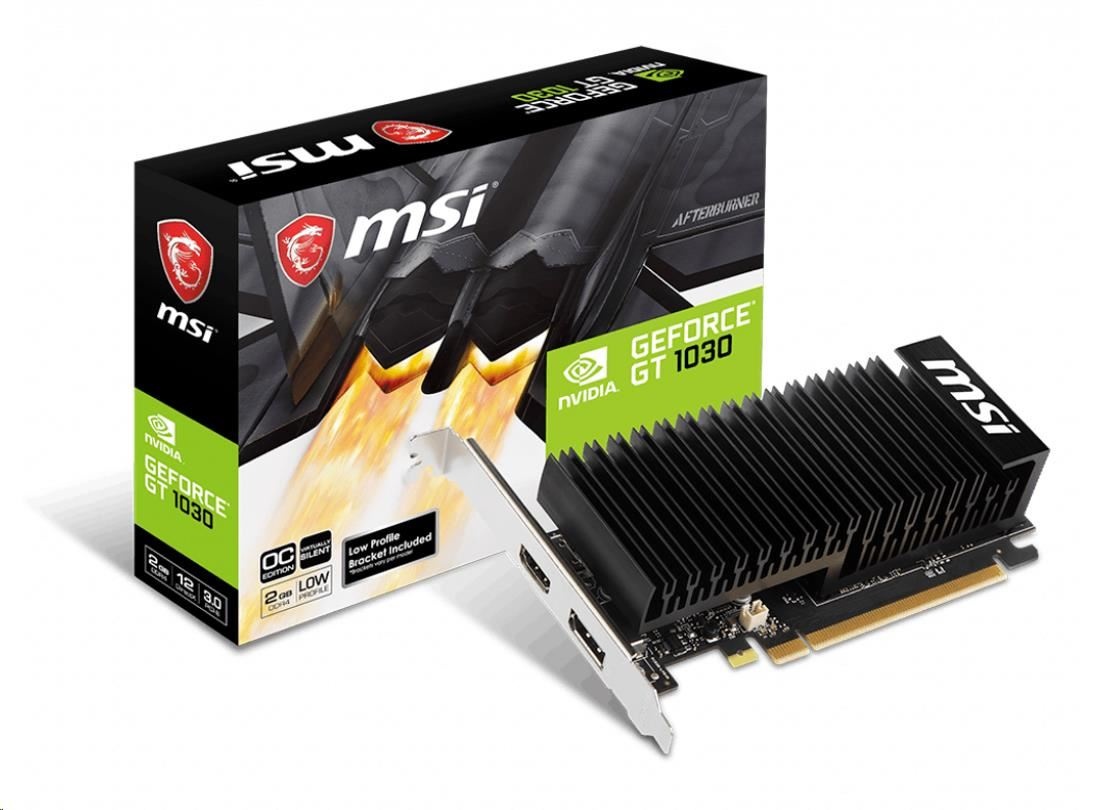

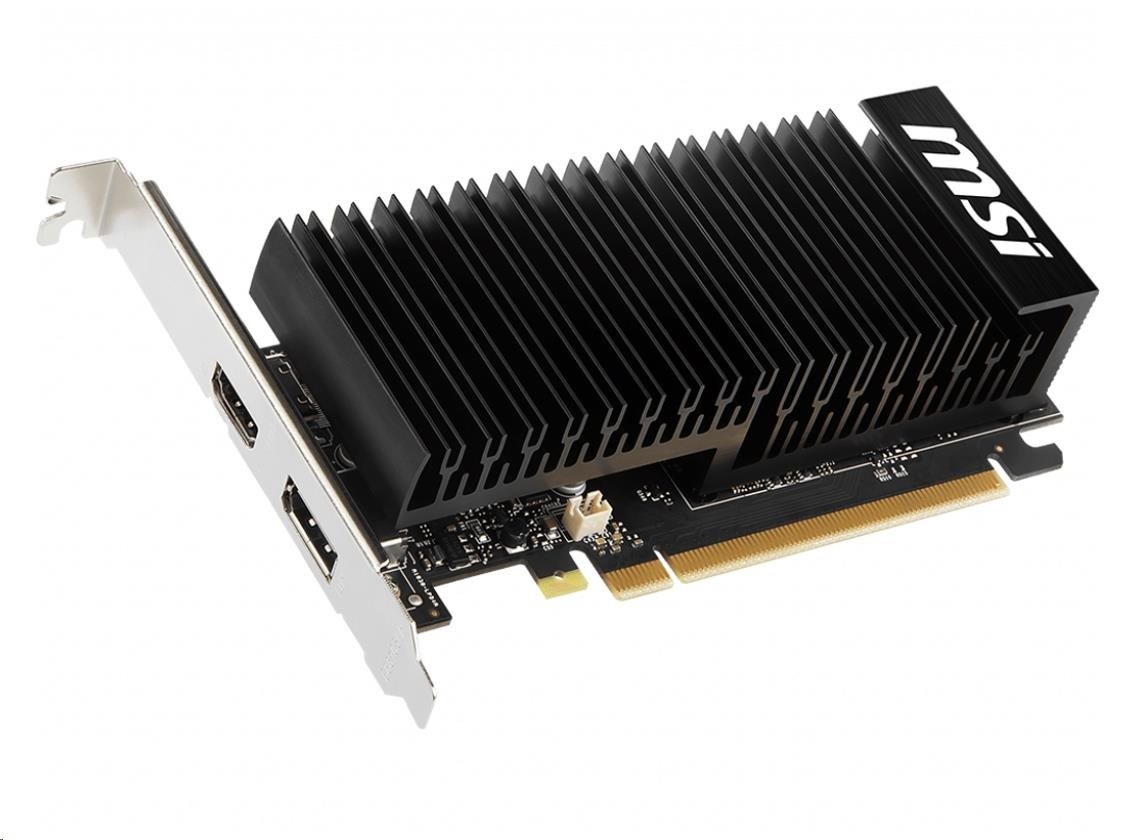

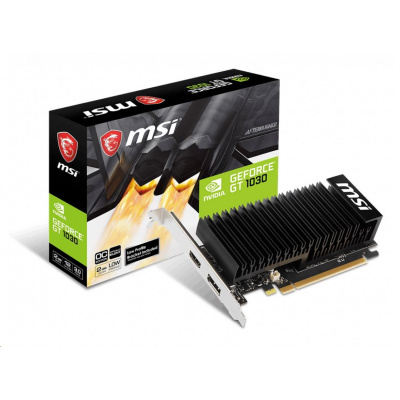

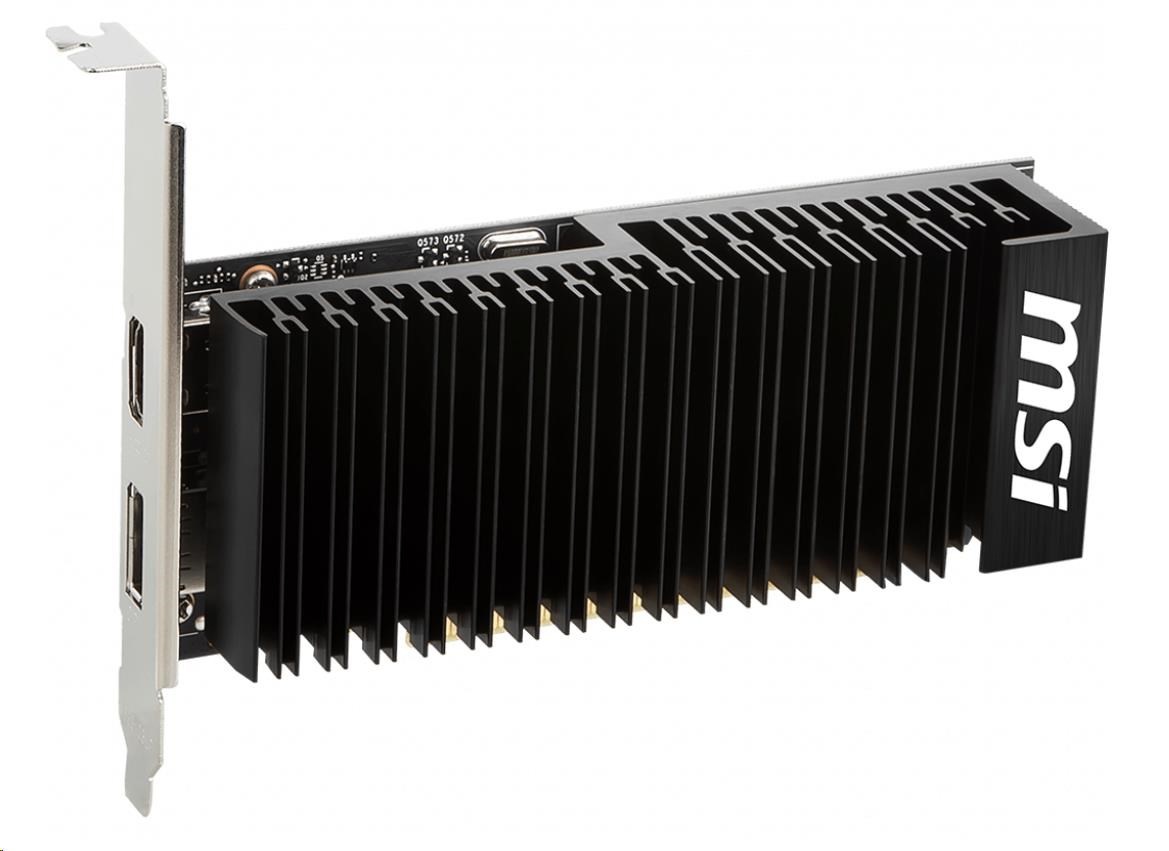

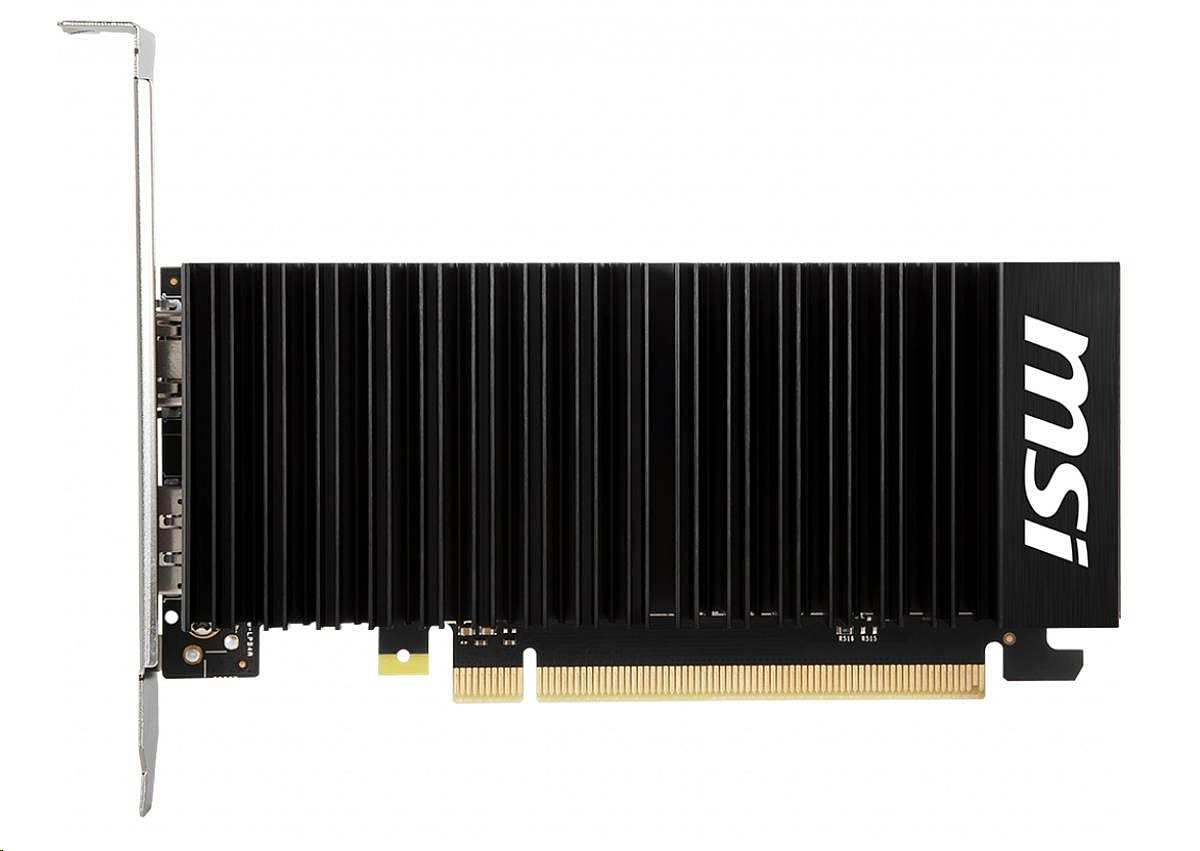

MSI VGA NVIDIA GeForce GT 1030 2GHD4 LP OC, GT 1030, 2GB DDR4, 1xDP, 1xHDMI

GEFORCE GT 1030 2GHD4 LP OC

Core/Memory

• Boost Clock / Base Clock
• 1430 MHz / 1189 MHz
• 2GB DDR4 / 2100 MHz Memory

All Solid Capacitors

• 10 years long lifetime under full load.
• Aluminum core for higher stability.

Low Profile Design

• Low profile design saves more spaces.
• User can build slim or smaller system.

Virtually Silent

• Large heat sink covers the area of GPU and memory.
• Providing the best environment for gaming and multimedia.

Afterburner Overclocking Utility

• Wireless control through mobile devices.
• Predator: In-game video recording.

GeForce Experience

• Ensures the best gaming experience by automatically updating users’ game-ready drivers.
• Allows users to optimize the game settings to their PC with a single click.

MODEL NAME

GeForce® GT 1030 2GHD4 LP OC

GRAPHICS PROCESSING UNIT

NVIDIA® GeForce® GT 1030

INTERFACE

PCI Express 3.0 x16 (uses x4)

CORES

384 Units

CORE CLOCKS

1189 MHz / 1430 MHz

MEMORY SPEED

2100 MHz

MEMORY

2GB DDR4

MEMORY BUS

64-bit

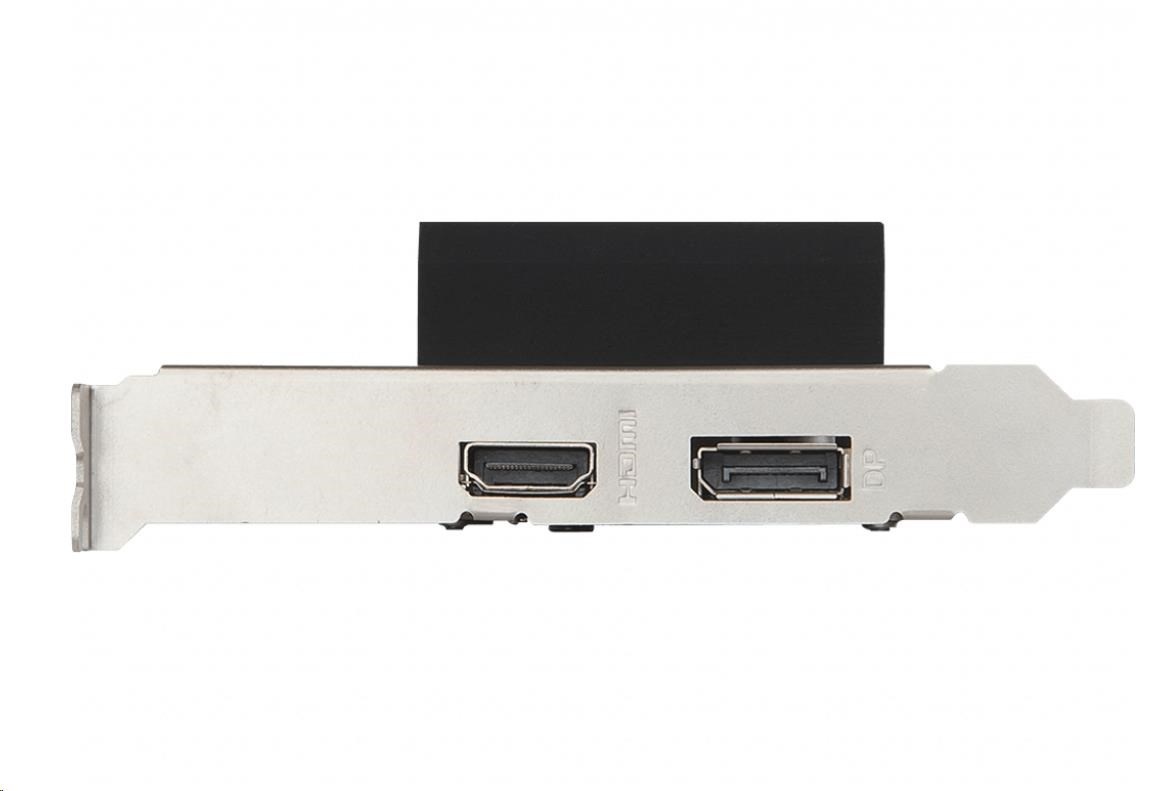

OUTPUT

DisplayPort (v1.4a)
HDMI (Supports 4K@60Hz as specified in HDMI 2.0b)

HDCP SUPPORT

2.2

POWER CONSUMPTION

20 W

RECOMMENDED PSU

300 W

CARD DIMENSION (MM)

150 x 69 x 38 mm

WEIGHT (CARD / PACKAGE)

304 g / 544 g

DIRECTX VERSION SUPPORT

12

OPENGL VERSION SUPPORT

4.5

AFTERBURNER OC

Y

MAXIMUM DISPLAYS

2

ACCESSORIES

Low Profile Bracket x 1
