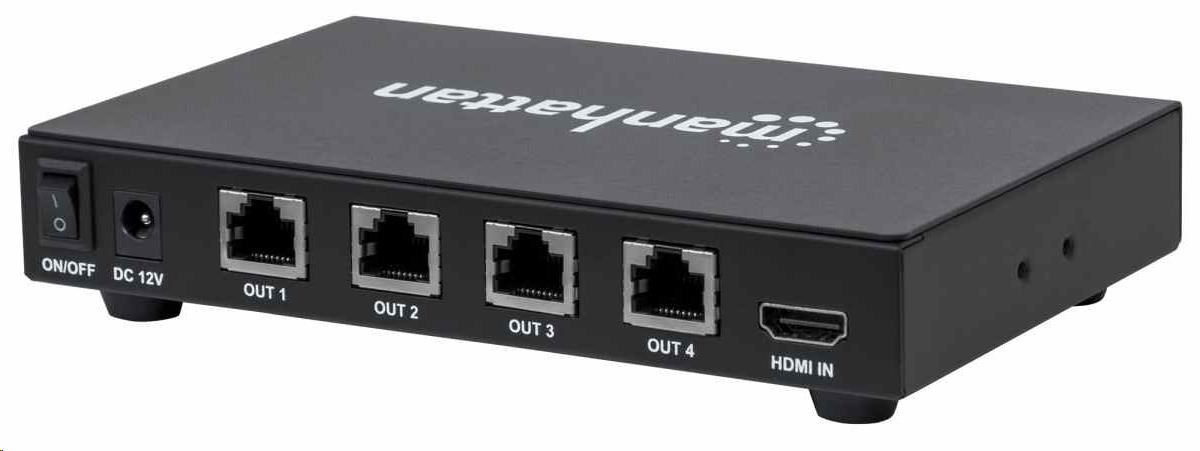

Manhattan HDMI rozdělovač, 1080p 4-Port HDMI Extending Splitter Transmitter, černá
Popis
Parametry
Hlídací pes
1080p 4-Port HDMI Extending Splitter Transmitter
Splits One Source to Four Outputs; Extends Signal up to 50 m (165 ft.), Single Ethernet Cable per Receiver, Video Bandwidth Amplifier, Black
- Replicates and extends a High-Definition (HD) digital audio/video signal to up to four HD 1080p HDMI Extending Splitter Receivers (207836 ) at distances up to 50 m (165 ft.) using Ethernet cable
- Supports 1080p resolution as well as HD 3D video and Deep Color (24-bits/pixel)
- Integrated video bandwidth amplifier
- Supports video-amplifier bandwidth of up to 1.65 Gbps (for 1080p)
- Supports LPCM, DTS Digital, DTS-HD Master Audio and Dolby TrueHD audio
- A flexible Audio/Video solution for conference rooms (when sharing ideas and data), digital signage (extending the distances between displays) and other applications
- Works with PlayStation and Xbox game systems, Blu-ray players, set-top boxes, satellite receivers and more
- Fully HDCP compliant
- This transmitting (Tx) unit requires at least one receiving (Rx) unit (207836) but connects up to four
- AC powered with Plug and Play installation; no special setup or remote required
- Plug-and-play installation
- Gold-plated contacts for corrosion-free connections
- Three-year warranty
TECHNICAL SPECIFICATIONS
| Standards and Certifications | - HDCP 1.4a - CE - FCC - RoHS2 |
| Package Contents | - 1080p 4-Port HDMI Extending Splitter Transmitter - Power adapter - Wallmounting brackets - Quick Instruction Guide |
| General | |
| Source-to-splitter (TX) range | up to 15 m (49 ft.) |
| Cat6 cable | - 1080p at 50 m (165 ft.) - 720p at 60 m (200 ft.) - 480p at 80 m (264 ft.) |
| Receiver(RX)-to-display range | up to 15 m (49 ft.) |
| Power | 12 VDC @ 1 A ; AC power adapter, 0.9 m (2.9 ft.) |
| Connections | |
| Transmitter | One HDMI female, 19-pin (input) Four Ethernet female, RJ45 (output) One 5 VDC female, power (input) |
| Receiver (sold seperately) | One HDMI female, 19-pin (output) One Ethernet female, RJ45 (input) One 5 VDC female, power (input) |
| Signal Input/Output | |
| Input video signal | 400 - 600 mV |
| Input DDC signal | 5 V p-p (TTL) |
| Maximum single-link range | 1.65 Gbps and 1080p resolution |
| Output video | HDMI 1.3, HDCP 1.4a |
| Frequency | 1.65 Gbps / 165 MHz |
| Video Resolutions | |
| DTV/HDTV | 480i/480p/576i/576p/720p/1080i/1080p |
| Physical | |
| LED indicators | power and port connection |
| Power adapter | 12 VDC / 1 A; 0.9 m (2.9 ft.) |
| Dimensions | 162 x 100 x 25 mm (6.4 x 3.9 x 1 in.) |
| Weight | 0.43 kg (0.95 lbs.) |
| Housing | metal |
| Operating Environment | |
| Operation Temperature | 0 – 40°C (32 – 104°F) |
| Storage Temperature | -20 – 60°C (-4 – 140°F) |
| Humidity (noncondensing) | 0 – 96% |
.
Specifikace kabelu / redukce:
