IN WIN Ventilátor Crown AC140, 14 cm, Single pack
IN WIN Fan Crown AC140, Single pack

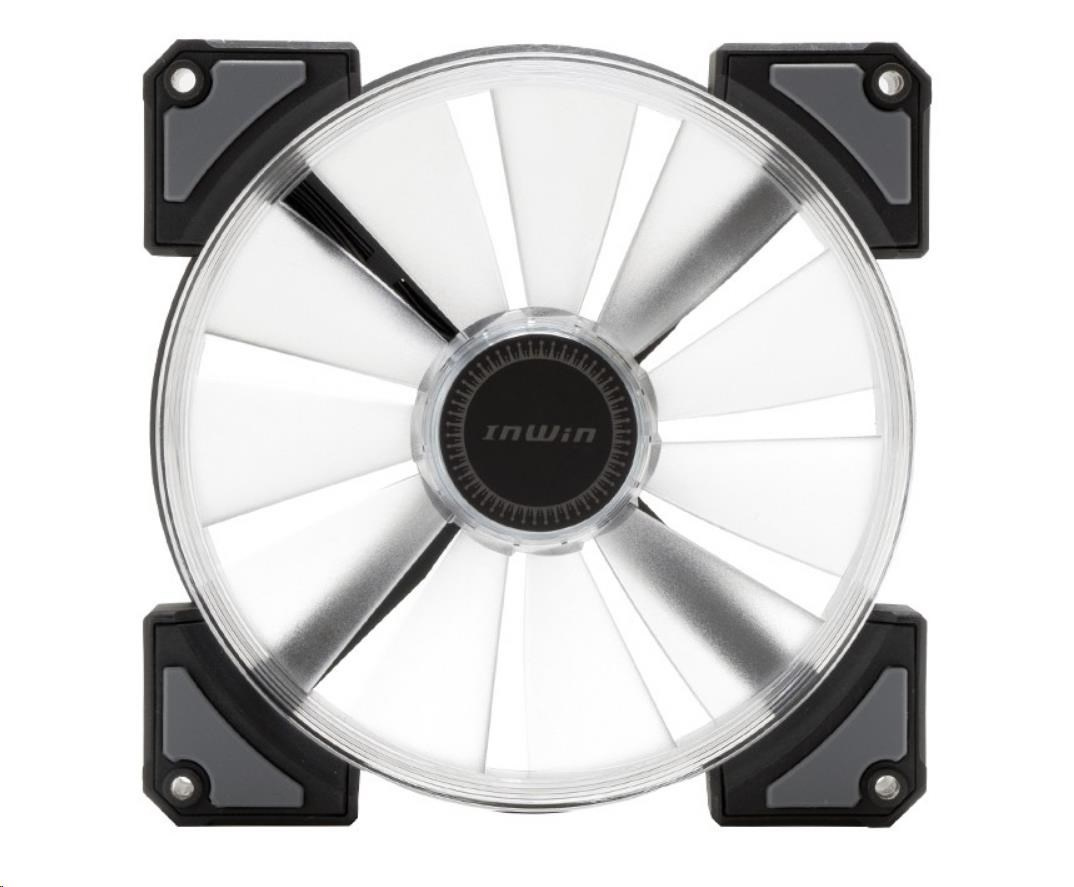

The CROWN AC140 fan features 11 blades that is molded with the inner frame, which effectively pushes the air to the center of the fan to create a turbine effect for higher pressure.

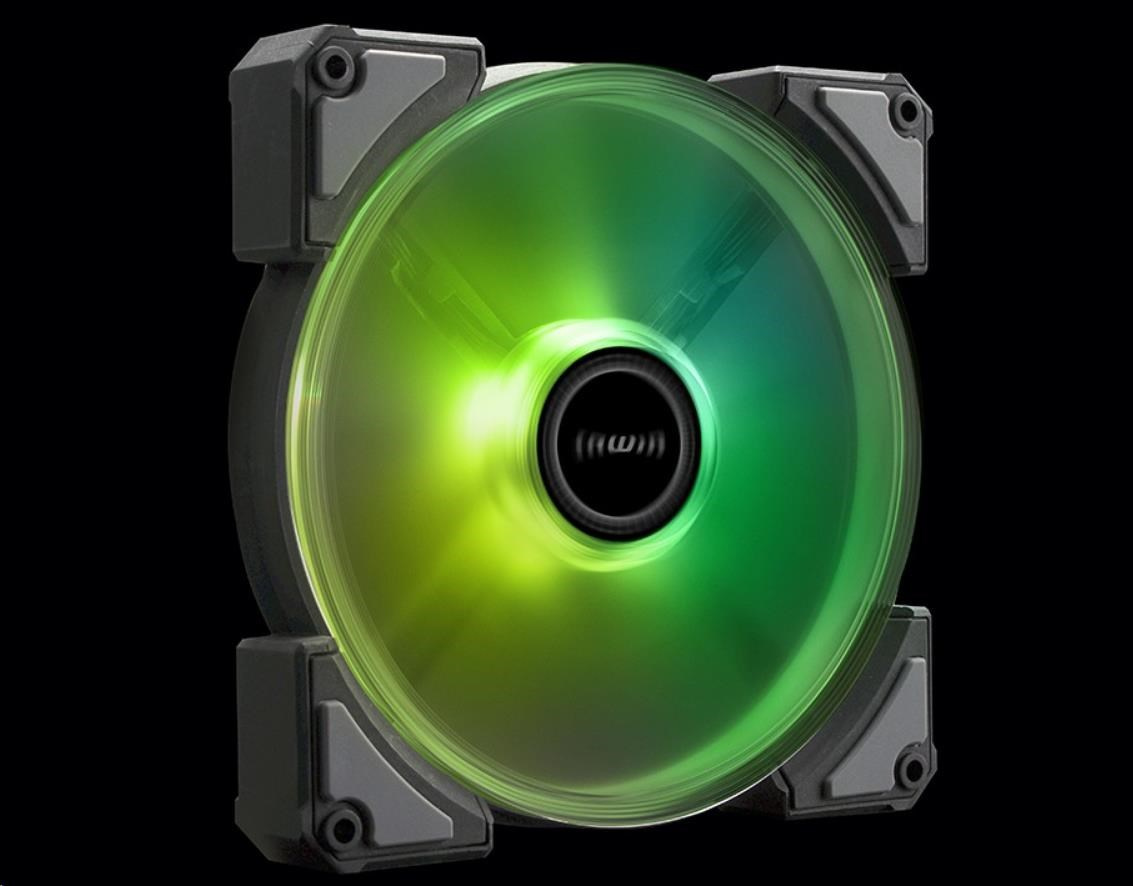

Six centered LEDs are controlled by independent IC chips to present a totally customizable addressable RGB lighting effect. This also develops a variety of mixed color experiences.
The CROWN AC140 inherits the modular cable design. This simplifies cable management by speeding up the installation process.
Connect the included addressable cable to the motherboard’s addressable header. The CROWN AC140’s radiant lighting effect can be beautifully and easily demonstrated with a compatible motherboard software.
*The included addressable cable can only be used with the motherboard with addressable RGB headers. Please make sure your motherboard supports addressable RGB lighting.
TECHNICAL SPECIFICATIONS
| Product Name | CROWN AC140 |
| PN | AC140FAN-1PK |
| Fan Size | 140 x 140 x 25mm |
| Material | PBT, PC |
| Rated Voltage | DC 12V |
| Rated Power | 2.4W |
| ADD RGB Rated Voltage | DC 5V |
| ADD RGB Rated Power | 1.5W |
| ADD RGB Rated Current | 0.3A |
| Speed Mode | PWM 500~1500 R.P.M / 18.1~ 32.5dB(A) |
| Air Flow | 69.03 CFM |
| Air Pressure | 1.93mm/ H2O |
| LED | Addressable RGB |
| Connector | 6-Pin Modular |
| Noise Level | 32.5 dB(A) Max. |
| Bearing Type | Long Life Sleeve Bearing |
| Life expectation | 60,000 hrs/ 40? |
| Net Weight | 185.6g |
| Package Dimension (H x W x L) | 245mm x 160mm x 33mm |
| Warranty | 2 years |
* Specifications may vary based on different regions.
.
