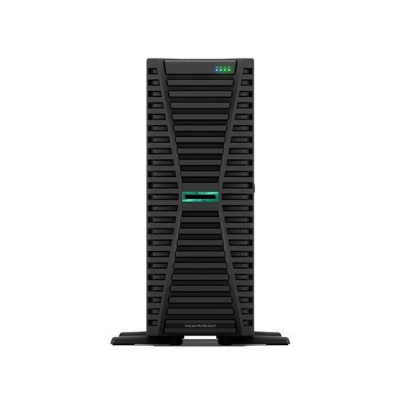

HPE PL ML350g11 4514Y (2.0G/16C) 2x32G (P64706) 2x480G SSD 2x1000W MR408i-o/4G 8-24SFF 4x1G Smart Choice

HPE ProLiant ML350 Gen11 - Smart Choice Models

SKU Number

P81776-425

Model Name

HPE ProLiant ML350 Gen11 4514Y 2.0GHz 16c 1P 2x32GB-R 8SFF MR408i-o 2x480GB SSD 2x1000W PS EU Server

Chassis

HPE ProLiant ML350 Gen11 SFF Configure-to-order Server

Processor

4514Y (16 core, 2.0 GHz, 150W)

Number of Processors

One with standard heatsink

Memory

64 GB (2x32 GB, 5600 MT/s) Notes: Runs at 4400 MT/s due to processor limitation.

Accelerators

Optional

Network Controller

Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T OCP3 Adapter for HPE Notes: Slot 15 OCP will be occupied along with CPU 1 MCIO port 1.

Storage Controller

HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM Storage Controller Notes:

- Slot 14 OCP will be occupied, PCIe expansion slot is not required.

- This controller supports up to 8 SAS/SATA/NVMe Drives with performance RAID.

- Smart Storage battery included.

Included Drives

2x HPE 480GB SATA 6G Read Intensive SFF BC Multi Vendor SSD

Optical Drive

Optional DVD-ROM or DVD-RW. Optional Half-Height RDX, up to 1. Refer to the QuickSpecs for more detail.

Expansion Slots

Default with 4 x8 PCIe 5.0 slots with primary riser cage. Upgradable with additional riser kit. Notes: Dual processors are required to support expansion card on PCIe slots 5-10.

Power Supply

2x HPE 1000W Flex Slot Titanium Hot Plug Power Supply Kit

Fans

3x Standard Fans Notes: Configurations that require fan kits are provided in later sections

Management

HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download); HPE iLO Advanced, HPE OneView Advanced (require licenses), and HPE Compute Ops Management

Security

TPM (Trusted Platform Module)

Form Factor

4U Tower, Optional Tower-to-Rack conversion kit (P47394-B21) to convert the unit to a 5U Rack-mount server.

Warranty

Server warranty includes 3-year parts, 3-year labor, 3-year onsite support with next business day response.
