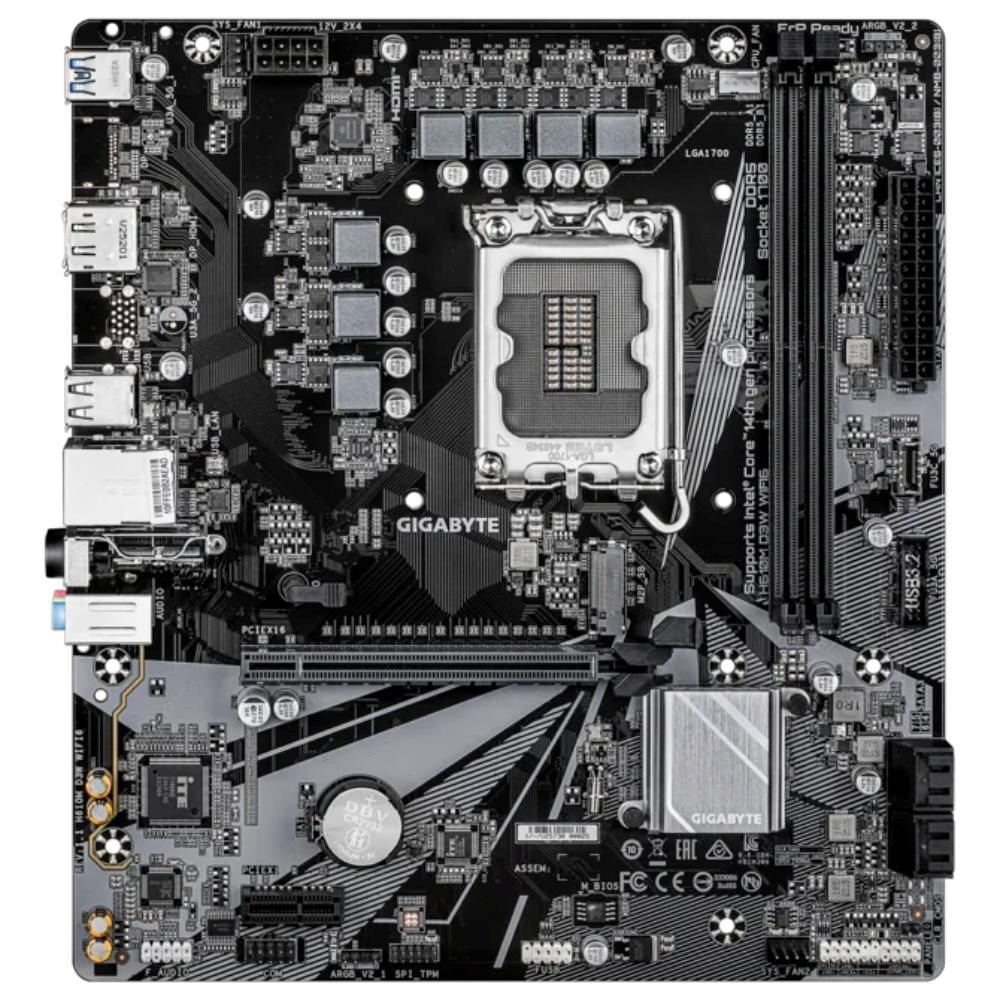

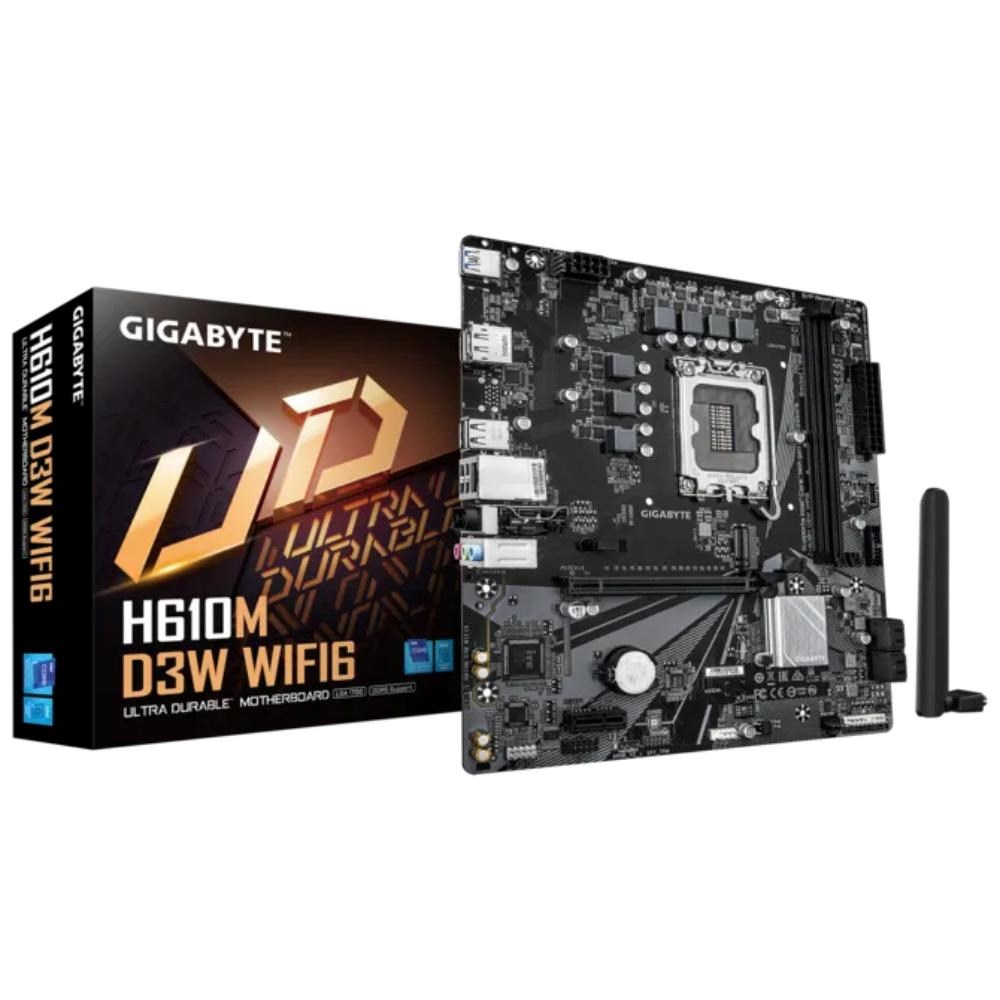

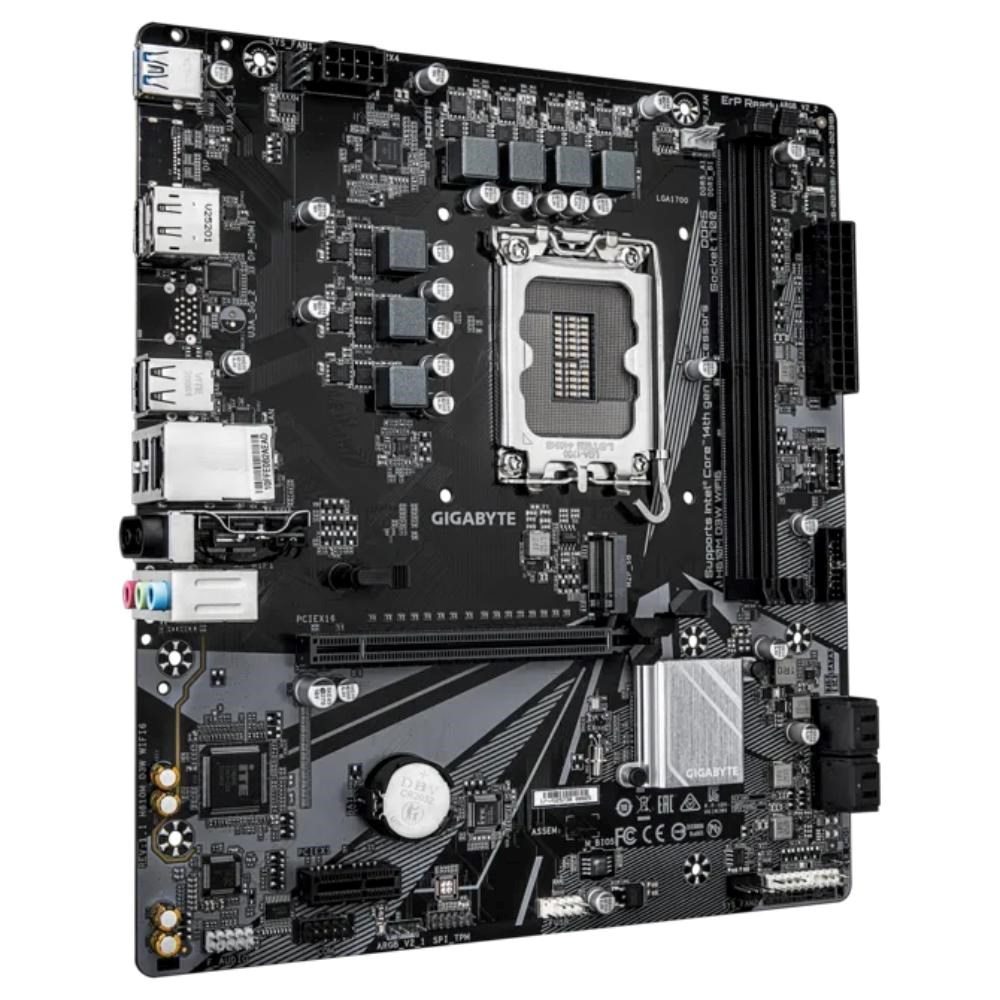

GIGABYTE MB Sc LGA1700 H610M D3W WIFI6, Intel H610, 2xDDR5, 1xHDMI, 1xDP, Wifi, mATX

CPU
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
(Go to GIGABYTE's website for the latest CPU support list.)
L3 cache varies with CPU

---

Chipset
Intel® H610 Express Chipset

---

Memory
14th and 13th Generation Intel® Core™ i9/i7 Processors:
- Support for DDR5 5600/5200/4800/4400 MT/s memory modules
13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium®Gold and Celeron® Processors:
- Support for DDR5 4800/4400 MT/s memory modules
2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

---

Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3 - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.)

---

Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

---

LAN
Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

---

Wireless Communication module
Realtek® Wi-Fi 6 RTL8851BE
WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 80MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
* Bluetooth version may change with updates. See the Wi-Fi chip vendor’s website for details.

---

Expansion Slots
CPU:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset:
- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

---

Storage Interface
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 3.0 x4/x2 SSD support)
- 4 x SATA 6Gb/s connectors

---

USB
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
- 3 x USB 3.2 Gen 1 ports (1 ports on the back panel, 2 ports available through the internal USB header)
- 2 x USB 2.0/1.1 ports available through the internal USB header
Chipset+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports on the back panel

---

Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
2 x addressable RGB Gen2 LED strip headers
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Clear CMOS jumper

---

Back Panel Connectors
1 x DisplayPort*
1 x HDMI port*
1 x USB 3.2 Gen 1 port
4 x USB 2.0/1.1 ports
1 x RJ-45 port
2 x antenna connectors
3 x audio jacks * Actual support may vary by CPU.

---

I/O Controller
iTE® I/O Controller Chip

---

H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the fan you install.

---

BIOS
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

---

Unique Features
Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model.
Support for Q-Flash
Support for Smart Backup

---

Bundled Software
Norton® Internet Security (OEM version)

---

Operating System
Support for Windows 11 64-bit
Support for Windows 10 64-bit

---

Form Factor
Micro ATX Form Factor; 24.4cm x 22.0cm
