GIGABYTE MB Sc AM4 B550 GAMING X V2, AMD B550, 4xDDR4, 1xHDMI, 1xDVI
Popis
Parametry
Hlídací pes

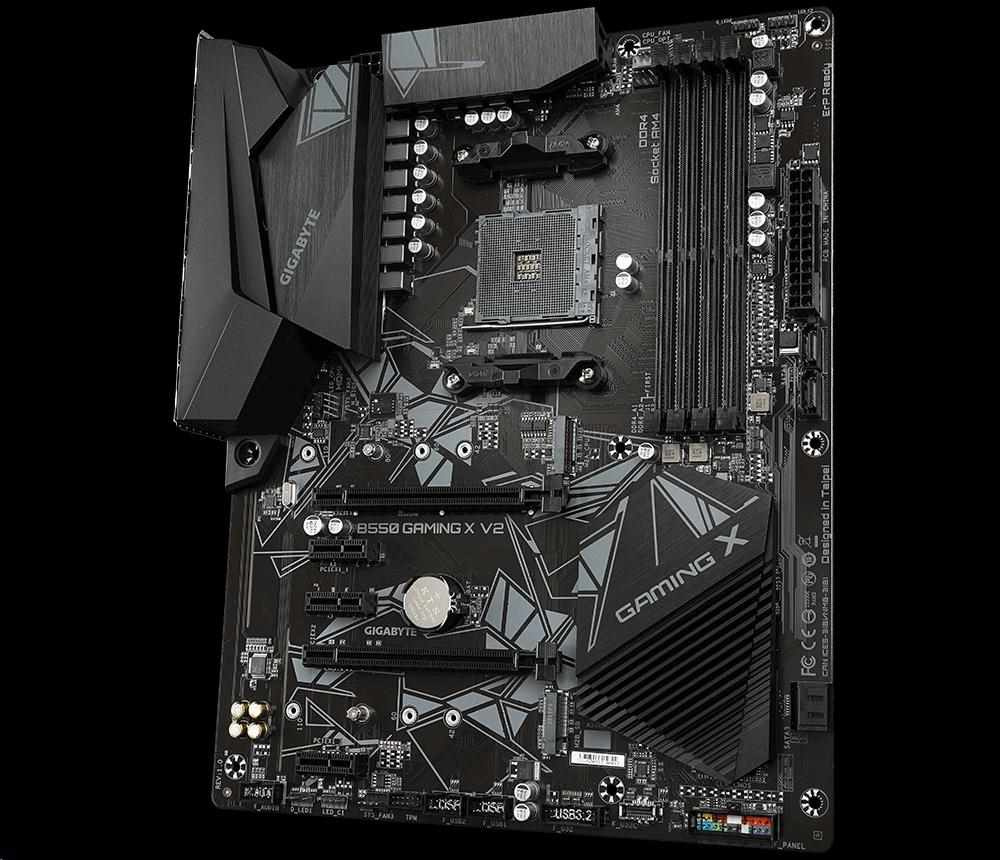

B550 Gaming X V2 (rev. 1.0)
AMD B550 Gaming Motherboard with 10+3 Phases Digital Twin Power Design, Enlarged Surface Heatsinks, PCIe 4.0 x16 Slot, Dual PCIe 4.0/3.0 x4 M.2, GIGABYTE Gaming LAN with Bandwidth Management, Front USB Type-C™, RGB FUSION 2.0, Q-Flash Plus
- Supports AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- 10+3 Phases Digital Twin Power Design with Low RDS(on) MOSFETs
- Ultra Durable™ PCIe 4.0 Ready x16 Slot
- Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 Connectors
- GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
- Front USB 3.2 Gen1 Type-C™ and HDMI & DVI-D for Multiple Display
- High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
- RGB FUSION 2.0 support Addressable LED & RGB LED Strips
- Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
- Anti-Sulfur Resistors Design
TECHNICAL SPECIFICATIONS
| CPU | AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors (Please refer "CPU Support List" for more information.) |
| Chipset | AMD B550 |
| Memory | - 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory - 3rd Gen AMD Ryzen™ Processors: Support for DDR4 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules - 3rd Gen AMD Ryzen™ with Radeon™ Graphics processors: Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules - Dual channel memory architecture - Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules - Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules - Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.) |
| Audio | - Realtek® ALC887 codec - High Definition Audio - 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software. |
| LAN | Realtek® GbE LAN chip (1000 Mbit/100 Mbit) |
| Expansion Slots | 1? x PCI Express x16 slot (PCIEX16), integrated in the CPU: - 3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode - 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
| 1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset: - Supporting PCIe 3.0 x2 mode | |
| 3 x PCI Express x1 slots (PCIEX1_1, PCIEX1_2, PCIEX1_3), integrated in the Chipset: - Supporting PCIe 3.0 x1 mode | |
| Onboard Graphics | Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors: 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. Maximum shared memory of 16 GB |
| Storage Interface | 1? x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: - 3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs - 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs |
| 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: - Supporting SATA and PCIe 3.0 x4/x2 SSDs | |
| 4 x SATA 6Gb/s connectors, integrated in the Chipset: - Support for RAID 0, RAID 1, and RAID 10 | |
| USB | Chipset: 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 3 x USB 3.2 Gen 1 ports on the back panel |
| Chipset: 1 x USB Type-C™ port with USB 3.2 Gen 1 support, available through the internal USB header 2 x USB 3.2 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) | |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C™ port, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper |
| Back Panel Connectors | 2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x DVI-D port 1 x HDMI port 3 x USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 2 Type-A port (red) 1 x Q-Flash Plus button 1 x RJ-45 port 3 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | - Voltage detection - Temperature detection - Fan speed detection - Water cooling flow rate detection - Overheating warning - Fan fail warning - Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. |
| BIOS | - 1 x 256 Mbit flash - Use of licensed AMI UEFI BIOS - PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | - Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer - Support for Q-Flash Plus - Support for Q-Flash - Support for Xpress Install |
| Bundled Software | - Norton® Internet Security (OEM version) - Realtek® 8118 Gaming LAN Bandwidth Control Utility |
| Operating System | Support for Windows 10 64-bit |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| Remark | - Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website. - Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website. |
.
Technologie paměti RAM:
DDR4
Socket (patice):
Socket AM4
Chipset:
AMD
Chipset:
AMD B550
PCI Express x16:
2
Podpora RAID:
1
Podpora RAID:
10
COM port:
Ne
LPT port:
Ne
Formát základní desky:
ATX
3.5mm Jack:
Ano
Bezdrátové připojení:
bez
Pro procesory:
AMD
Počet paměťových slotů:
4
DisplayPort:
0
TPM:
Ano
PCI:
0
M.2 slot:
2
SATA 3:
4
VGA:
0
DVI:
1
HDMI:
1
Led Header:
Ano
PCI Express x1:
3
LAN:
1Gbit/s
Aktuální cena produktu je3065Kč
s dph
