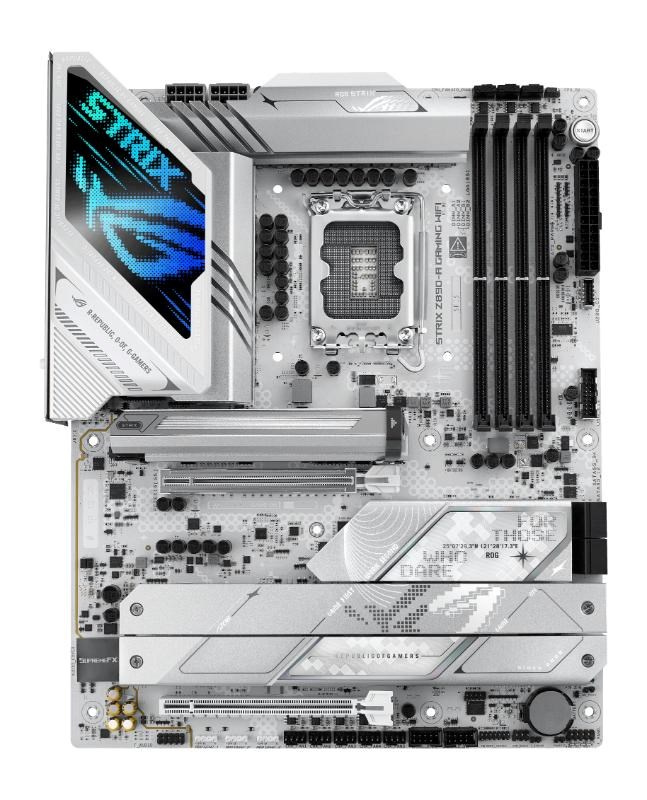

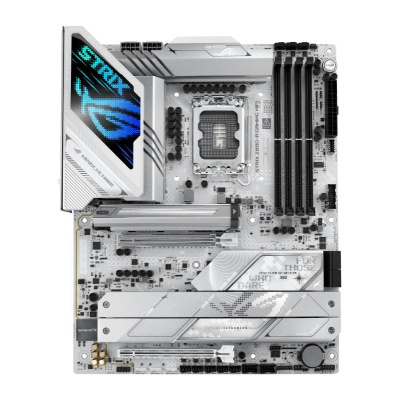

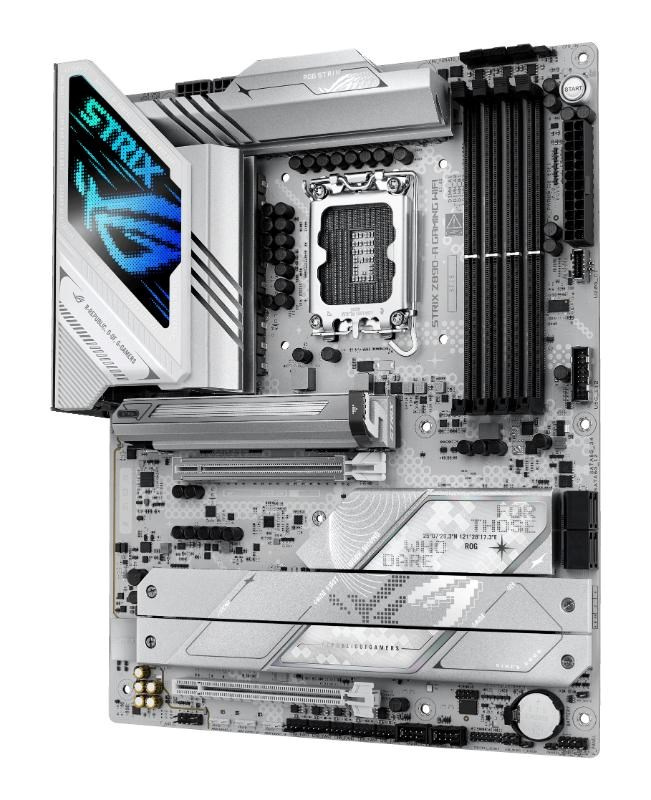

    ASUS MB Sc LGA1851 ROG STRIX Z890-A GAMING WIFI, Intel Z890, 4xDDR5, 1xDP, 1xHDMI, 2xThunderbolt, WI-FI, ATX

    Přidat do oblíbenýchASUS MB Sc LGA1851 ROG STRIX Z890-A GAMING WIFI, Intel Z890, 4xDDR5, 1xDP, 1xHDMI, 2xThunderbolt, WI-FI, ATX
    Formát základní desky:ATX; Chipset:Intel Z890; Socket (patice):Socket 1851; Pro procesory:Intel; Technologie paměti RAM:DDR5; Počet paměťových slotů:4; M.2 slot:5; SATA 3:4; Podpora RAID:0, 1, 5, 10; PCI Express x16:2; PCI Express x1:0; LAN:2.5Gbit/s; Bezdrátové připojení:WiFi + Bluetooth; DisplayPort:1; HDMI:1; VGA:0; DVI:0; DisplayPort Type-C:0.

    Kód produktu1887481
    Part number90MB1I90-M0EAY0
    EAN produktu4711387758830

    Záruka:36 Měsíc(ů)
    Výrobce:Asus
    Skladová dostupnost:Skladem
    Vaše cena bez DPH
    10152.07 Kč
    Vaše cena včetně DPH
    12284 Kč
    Počet
    ks
    Dotaz na prodejce >






    Přidat produkt k porovnání >Přidat produkt k oblíbeným >
    Popis
    Parametry
    Hlídací pes

    ASUS ROG STRIX Z890-A gaming wifi

    With Thunderbolt™ 4, PCIe® 5.0, and Polymo lighting, the ROG Strix Z890-A delivers lightning-fast data transfers, exceptional connectivity and a customizable aesthetic that can be subtle or bold. This motherboard delivers the power and speed essential for elite gaming and the demands of advanced AI PC applications.


    CPU

    Support Intel® Core™ Ultra Processors (Series 2)*
    Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
    * Refer to https://www.asus.com/support/download-center/ for CPU support list.
    ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.


    Chipset

    Intel® Z890 Chipset


    Memory

    4 x DIMM slots, max. 192GB, DDR5
    Support up to 8600+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
    Dual channel memory architecture
    Supports Intel® Extreme Memory Profile (XMP) memory module
    Supports DIMM Flex
    Supports DIMM FIT
    ASUS Enhanced Memory Profile III (AEMPIII)
    * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
    * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.


    Graphics

    1 x DisplayPort*
    1 x HDMI™ port**
    2 x Intel® Thunderbolt™ 4 support
    DisplayPort and Thunderbolt™ video outputs***
    - Graphics specifications may vary between
    CPU types. Please refer to www.intel.com for any updates.
    * Supports max. 8K@60Hz as specified in
    DisplayPort 1.4.
    ** Supports 4K@60Hz as specified in HDMI
    2.1.
    *** In Thunderbolt™ 4 mode, supports up to
    8K@60Hz x1 with DSC or 4K@60Hz x 2, maximum total bandwidth up to 23.8Gbps or
    16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs. In DP
    alt mode, supports up to UHBR20.
    **** VGA resolution support depends on
    processors' or graphic cards' resolution.
    ***** While installing the operating
    system, please ensure that your monitor is connected to the HDMI port on the
    back I/O panel or to a discrete graphics card.


    Expansion Slots

    Intel® Core™ Ultra Processors (Series 2)
    1 x PCIe 5.0 x16 slot
    Intel® Z890 Chipset
    1 x PCIe 4.0 x16 slot (supports x4 mode)
    - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.


    Storage

    Total Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports
    Intel® Core™ Ultra Processors (Series 2)*
    M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
    M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
    Intel® Z890 Chipset
    M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
    M.2_4 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
    M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
    4 x SATA 6Gb/s ports
    * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.


    Ethernet

    1 x Intel® 2.5Gb Ethernet
    ASUS LANGuard


    Wireless & Bluetooth

    Wi-Fi 7*
    2x2 Wi-Fi 7 (802.11be)
    Supports 2.4/5/6GHz frequency band**
    Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
    Bluetooth® v5.4***
    *Wi-Fi features may vary depending on the operating system
     For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
     For Windows 10, only Wi-Fi 6 is supported.
    ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
    *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.


    USB

    Rear USB (Total 10 ports)
    2 x Thunderbolt™ 4 ports (2 x USB Type-C®)*
    6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C®with up to 30W PD/PPD Fast-charge)**
    2 x USB 5Gbps ports (2 x Type-A)
    Front USB (Total 7 ports)
    1 x USB 20Gbps connector (supports USB Type-C® )*
    1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
    2 x USB 2.0 headers support 4 additional USB 2.0 ports
    * USB Type-C® power delivery output: max. 5V/3A
    ** USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A


    Audio

    ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
    - Impedance sense for front and rear headphone outputs
    - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
    - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
    - Supports up to 32-Bit/384 kHz playback on front panel
    Audio Features
    - SupremeFX Shielding Technology
    - Savitech SV3H712 AMP
    - Rear optical S/PDIF out port
    - Premium audio capacitors
    - Audio cover
    * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
    ** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.


    Back Panel I/O Ports

    2 x Thunderbolt™ 4 ports (2 x USB Type-C®)*
    6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C®with up to 30W PD/PPD Fast-charge)
    2 x USB 5Gbps ports (2 x Type-A)
    1 x DisplayPort
    1 x HDMI™ port
    1 x Wi-Fi module
    1 x Intel® 2.5Gb Ethernet port
    2 x Audio jacks
    1 x Optical S/PDIF out port
    1 x BIOS FlashBack™ button
    1 x Clear CMOS button


    Internal I/O Connectors

    Fan and Cooling Related
    1 x 4-pin CPU Fan header
    1 x 4-pin CPU OPT Fan header
    1 x 4-pin AIO Pump header
    5 x 4-pin Chassis Fan headers
    Power Related
    1 x 24-pin Main Power connector
    2 x 8-pin +12V CPU Power connectors
    Storage Related
    5 x M.2 slots (Key M)
    4 x SATA 6Gb/s ports
    USB
    1 x USB 20Gbps connector (supports USB Type-C® )
    1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
    2 x USB 2.0 headers support 4 additional USB 2.0 ports
    Miscellaneous
    3 x Addressable Gen 2 headers
    1 x Chassis Intrusion header
    1 x CPU Over voltage jumper
    1 x Front Panel Audio header (F_AUDIO)
    1 x Start button
    1 x 10-1 pin Front System Panel header
    1 x Thermal Sensor header
    1 x Thunderbolt™ (USB4®) header


    Special Features

    Extreme Engine Digi+
    - 5K Black metallic capacitors
    ASUS Q-Design
    - M.2 Q-Latch
    - M.2 Q-Release
    - M.2 Q-Slide
    - PCIe Slot Q-Release Slim (with PCIe SafeSlot)
    - Q-Antenna
    - Q-Dashboard
    - Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
    - Q-SlotASUS
    Thermal Solution
    - M.2 heatsink backplate
    - M.2 heatsink
    ASUS EZ DIY
    - BIOS FlashBack™ button
    - BIOS FlashBack™ LED
    - Clear CMOS button
    - CPU Socket lever protector
    - ProCool II
    - Pre-mounted I/O shield
    - SafeSlot
    - SafeDIMM
    Aura Sync
    - Addressable Gen 2 headers


    Software Features

    ROG Exclusive Software
    - ROG CPU-Z
    - Dolby Atmos
    ASUS Exclusive Software
    Armoury Crate
    - Aura Creator
    - Aura Sync
    - Xpert 4 (with AI Cooling II)
    - GameFirst
    - Power Saving
    AIDA64 Extreme (60 days free trial)
    HWiNFO
    ASUS AI Advisor
    ASUS DriverHub
    ASUS GlideX
    MyAsus
    USB Wattage Watcher
    TurboV Core
    Adobe Creative Cloud (30 Days Free Trial)
    Norton 360 for Gamers (60 Days Free Trial)
    WinRAR (40 Days Free Trial)
    UEFI BIOS
    AI Overclocking Guide
    NPU Boost
    ASUS EZ DIY
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash
    - ASUS UEFI BIOS EZ Mode
    - ASUS MyHotkey
    FlexKey


    BIOS

    256 Mb UEFI AMI BIOS


    Manageability

    WOL by PME, PXE


    Accessories

    Cables
    2 x SATA 6Gb/s cables
    Additional Cooling Kit
    1 x Thermal pad for M.2 22110
    Miscellaneous
    1 x ASUS WiFi Q-Antenna
    1 x Cable ties package
    1 x M.2 Q-Latch package
    1 x ROG key chain
    1 x ROG Strix stickers
    5 x M.2 rubbers
    Documentation
    1 x Quick start guide


    Operating System

    Windows 11 (22H2 later)


    Form Factor

    ATX Form Factor
    12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

    .
    Technologie paměti RAM: DDR5
    Socket (patice): Socket 1851
    Chipset: Intel Z890
    PCI Express x16: 2
    Podpora RAID: 1
    Podpora RAID: 5
    Podpora RAID: 0
    Podpora RAID: 10
    COM port: Ne
    Formát základní desky: ATX
    3.5mm Jack: Ano
    Bezdrátové připojení: WiFi + Bluetooth
    Pro procesory: Intel
    Počet paměťových slotů: 4
    DisplayPort: 1
    TPM: Ne
    USB 2: 4
    USB 3: 9
    M.2 slot: 5
    SATA 3: 4
    VGA: 0
    DVI: 0
    HDMI: 1
    Led Header: Ano
    PCI Express x1: 0
    USB C: 4
    LAN: 2.5Gbit/s
    DisplayPort Type-C: 0
    Počet Thunderbolt: 2
    Aktuální cena produktu je12284Kč  s dph
