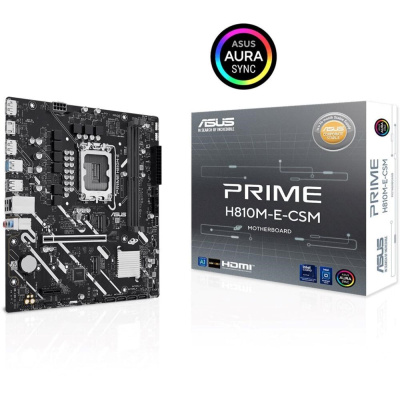

ASUS MB Sc LGA1851 PRIME H810M-E-CSM, Intel H810, 2xDDR5, 2xDP, 1xHDMI, mATX

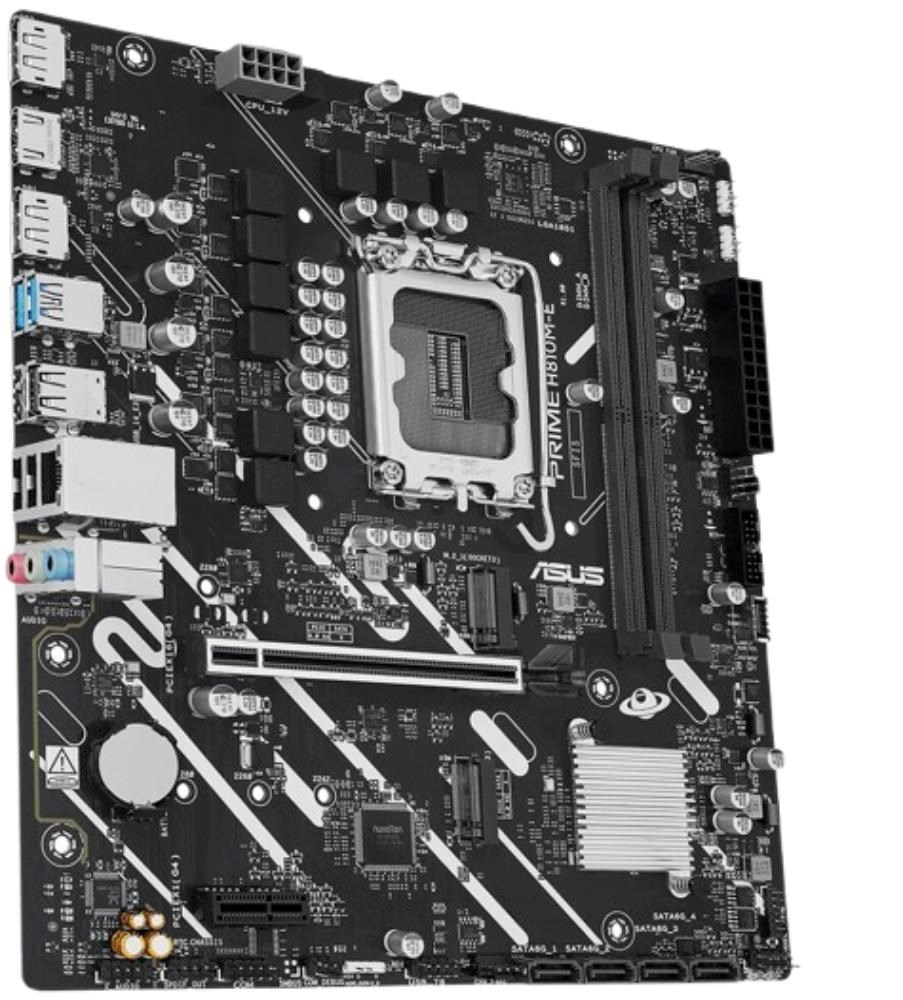

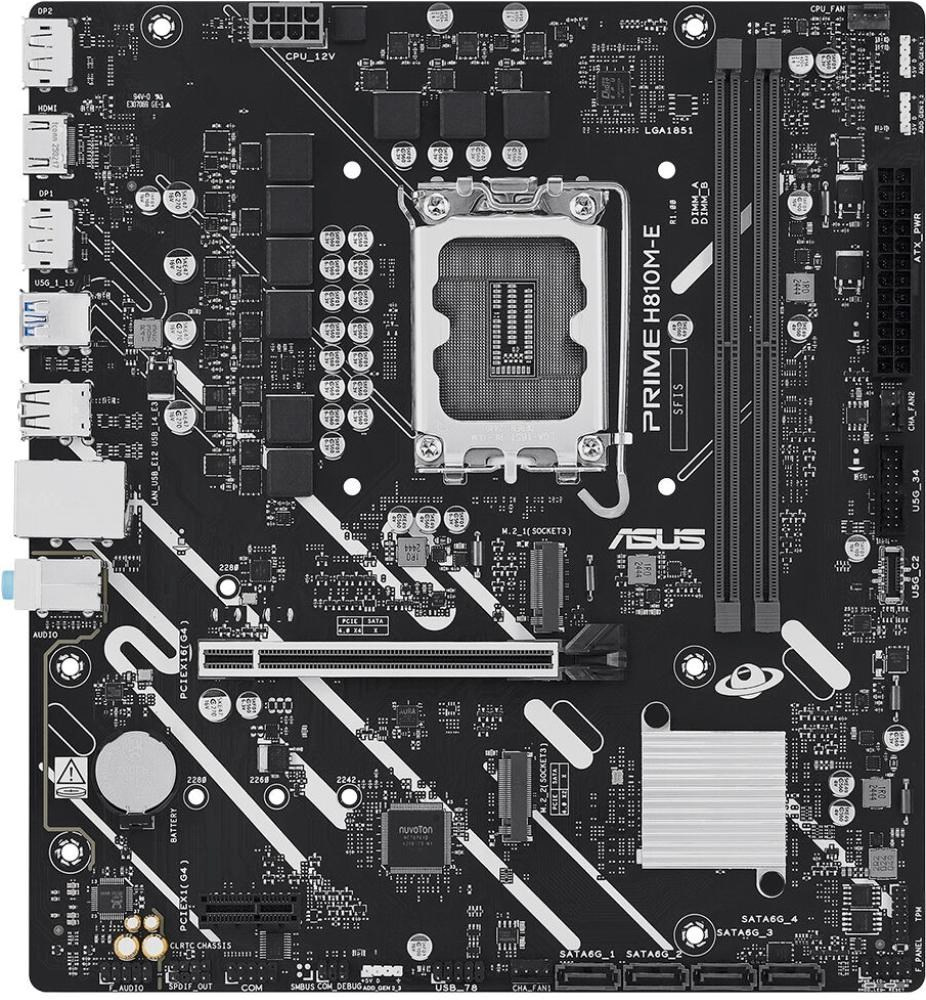

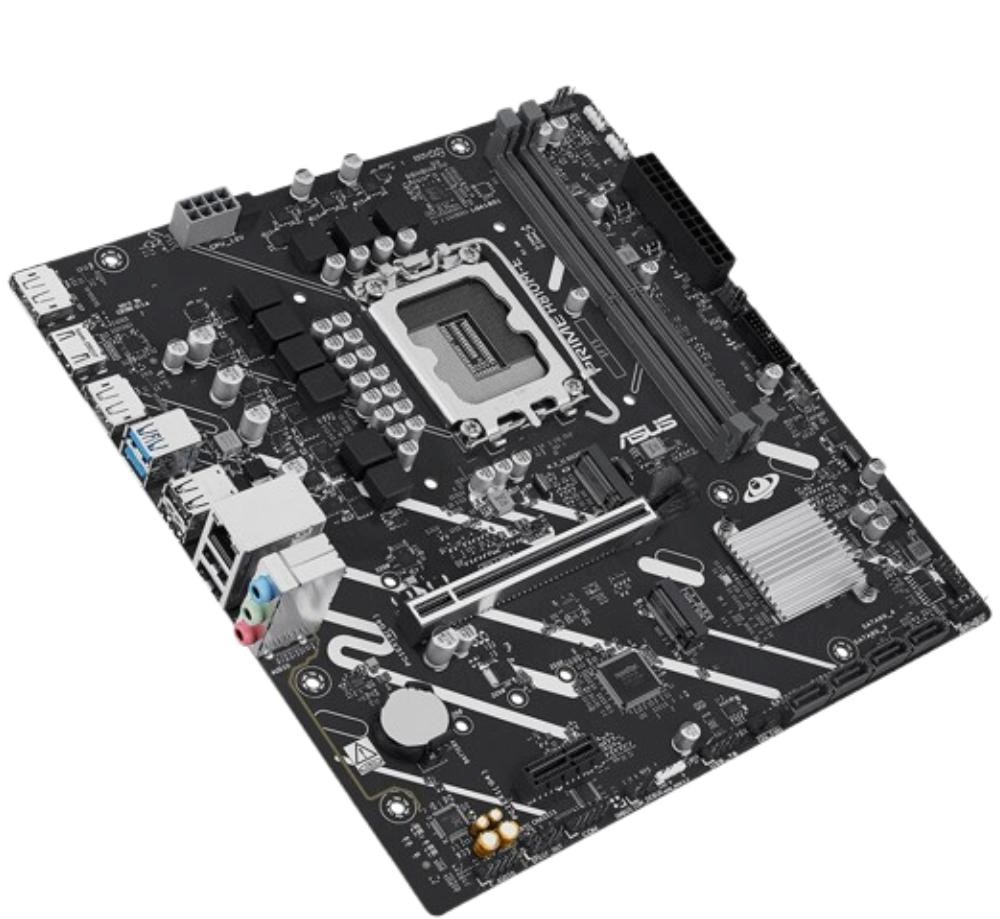

ASUS PRIME H810M-E-CSM
The ASUS PRIME H810M-E-CSM motherboard is designed to deliver stable performance and essential features for everyday computing. Built for Intel® Core™ processors on the LGA1851 socket, it offers efficient power delivery, comprehensive connectivity, and proven ASUS reliability — making it an ideal choice for business, home, or office PCs.
CPU
Support Intel® Core™ Ultra Processors (Series 2), LGA1851
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
*Refer to https://www.asus.com/support/download-center/ for CPU support list.*
**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel® H810 Chipset
Memory
2 x DIMM slots, max. 128GB, DDR5 — Supports up to 6400MT/s, Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
DIMM Fit
Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile II (AEMP II)
*Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.*
**Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics
2 x DisplayPort**
1 x HDMI™ port***
*Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.*
**Supports max. 4K@60Hz as specified in DisplayPort 1.4.*
***Supports 4K@60Hz as specified in HDMI 2.1.*
****VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots
Intel® Core™ Ultra Processors (Series 2): 1 x PCIe 4.0 x16 slot
Intel® H810 Chipset: 1 x PCIe 4.0 x1 slot
*To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.*
Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® H810 Chipset
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
4 x SATA 6Gb/s ports
Ethernet
1 x Realtek 1Gb Ethernet
ASUS LANGuard
USB
Rear USB (Total 6 ports): 2 x USB 5Gbps ports (Type-A), 4 x USB 2.0 ports
Front USB (Total 5 ports): 1 x USB 5Gbps connector (Type-C®), 1 x USB 5Gbps header (2 ports), 1 x USB 2.0 header (2 ports)
*USB Type-C® power delivery output: max. 5V/3A.*
**USB_E1, USB_E2, and USB_E3 ports share bandwidth.**
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features: Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers
*A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.*

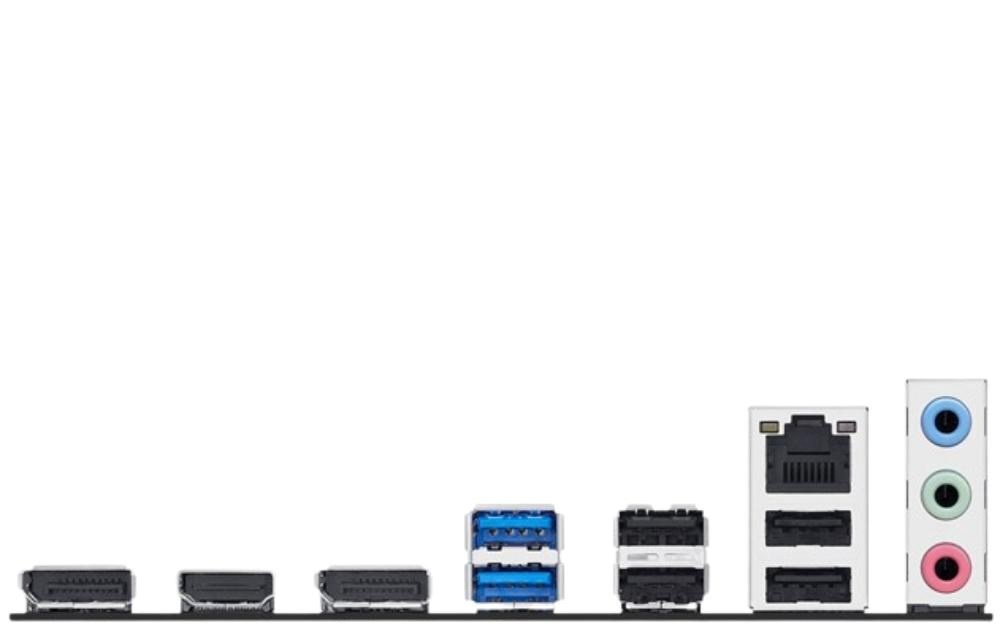

Back Panel I/O Ports
2 x USB 5Gbps (Type-A)
4 x USB 2.0 (Type-A)
2 x DisplayPort
1 x HDMI™
1 x Realtek 1Gb Ethernet
3 x Audio jacks
Internal I/O Connectors
Fan and Cooling Related: 1 x 4-pin CPU Fan header, 2 x 4-pin Chassis Fan headers
Power Related: 1 x 24-pin Main Power connector, 1 x 8-pin +12V CPU Power connector
Storage: 2 x M.2 (Key M), 4 x SATA 6Gb/s
USB: 1 x USB 5Gbps Type-C®, 1 x USB 5Gbps header (2 ports), 1 x USB 2.0 header (2 ports)
Miscellaneous: 3 x ARGB Gen2 headers, 1 x Clear CMOS, 1 x Chassis Intrusion, 1 x COM, 1 x F_AUDIO, 1 x S/PDIF Out, 1 x SPI TPM (14-1 pin), 1 x Front Panel (10-1 pin)
Special Features
ASUS 5X PROTECTION III: DIGI+ VRM, LANGuard, Overvoltage protection, SafeSlot Core+, Stainless-steel back I/O
ASUS Q-Design: Q-Dashboard, Q-LED Core, Q-Slot
ASUS Thermal Solution: Aluminum heatsink design
ASUS EZ DIY: Dual DIMM clips
Aura Sync: Addressable RGB Gen 2 headers
Software Features
ASUS Exclusive Software: Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 2+), ASUS DriverHub, ASUS CPU-Z
Adobe Creative Cloud (Free Trial)**, Norton 360 Deluxe (60 Days), WinRAR (40 Days)
UEFI BIOS: ASUS CrashFree BIOS 3, ASUS EZ Flash, ASUS MyHotkey
*For more software features, please visit the ASUS support site.*
**For regional restrictions, see: https://www.asus.com/content/asus-offers-adobe-creative-cloud/.**
BIOS
256 (128+128) Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables: 2 x SATA 6Gb/s
Miscellaneous: 1 x I/O shield, 1 x M.2 anchor package
Documentation: 1 x Quick start guide
Operating System
Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later)
Form Factor
micro-ATX Form Factor
9.6 inch x 8.75 inch (24.4 cm x 22.2 cm)
