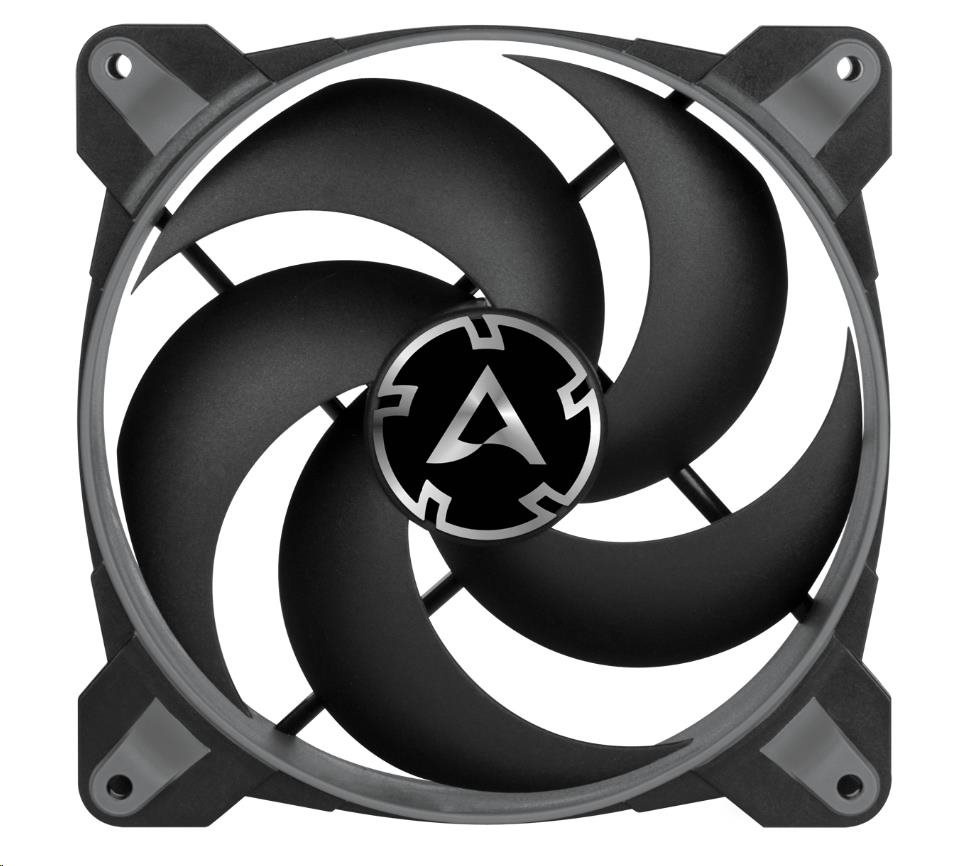

    ARCTIC ventilátor BioniX P140 PWM PST 140x140x28mm, šedá

    Přidat do oblíbenýchARCTIC ventilátor BioniX P140 PWM PST 140x140x28mm, šedá
    Typ chladiče:Aktivní; Využití chladiče:Do PC skříně; Velikost ventilátoru:140x140; Barva podsvícení:bez podsvícení; Napájecí konektor:4pin.

    Kód produktu523196
    Part numberACFAN00159A
    EAN produktu4895213702355

    Záruka:24 Měsíc(ů)
    Výrobce:Arctic Cooling
    Skladová dostupnost:Skladem
    Vaše cena bez DPH
    301.65 Kč
    Vaše cena včetně DPH
    365 Kč
    Počet
    ks
    Dotaz na prodejce >






    Přidat produkt k porovnání >Přidat produkt k oblíbeným >
    Popis
    Parametry
    Hlídací pes

    BioniX P140

    • OPTIMISED FOR STATIC PRESSURE - During the development of the new BioniX P140, special emphasis was placed on a focused airstream and thus a high static pressure.
      The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the BioniX P140 is particularly suitable for use on heatsinks and radiators.
    • MORE EFFICIENT TECHNOLOGY - The motor is powered by a Neodym-Iron-Boron-Magnet ring of the newest generation, which allows the new BioniX P140 to run much more efficiently than its predecessors. This saves energy and lowers the coil temperature without comprimising the performance.
    • MAXIMUM QUIETNESS, MINIMUM VIBRATION - Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable.
      Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.
    • EXTENDED LIFE SPAN - A 10 °C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature. Consequently, we have extended the warranty to 10 years.
    • 200 TO 1950 RPM REGULATED VIA PWM PST - With a wide range of regulation and the PWM Sharing Technology (PST), the BioniX P140 fan speed can be controlled synchronously with all your other fans together. This keeps noise at a minimum while guaranteeing maximum cooling performance when needed.
    • HIGH QUALITY BEARING - Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.

    TECHNICAL SPECIFICATIONS

    Performance
    Fan Speed 200 - 1950 rpm
    Airflow 77.6 CFM / 131.92 m3/h
    Static Pressure 2.85 mm/H2O
    Noise Level 0.45 Sone
    Fan
    Fan Frame BioniX
    Controll Type PST
    Connector 4-Pin-Connector + 4-Pin-Socket
    Fan Bearing Fluid Dynamic Bearing
    Electric Characteristics
    Typical Voltage 12 V DC
    Starting Voltage 0 V
    Current / Voltage 0.15 A / 12 V
    Cable Leght 400 mm
    Size & Weight
    Lenght 140 mm
    Width 140 mm
    Height 28 mm
    Weight 181 g

    .
    Využití chladiče: Do PC skříně
    Typ chladiče: Aktivní
    Barva podsvícení: bez podsvícení
    Napájecí konektor: 4pin
    Velikost ventilátoru: 140x140
    Aktuální cena produktu je365Kč  s dph
